Window Shade: Service and Repair

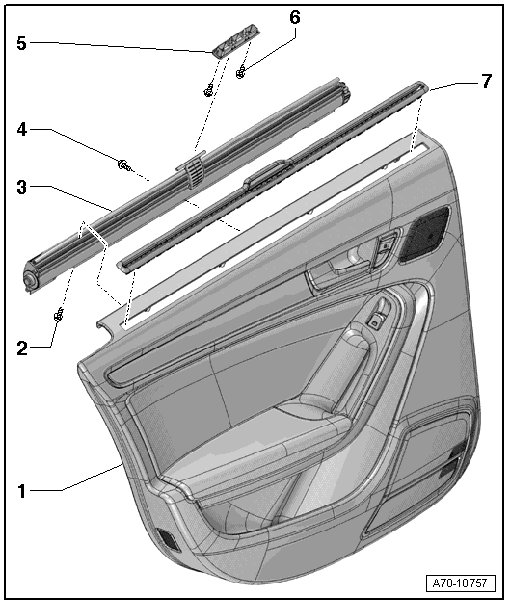

Door Window Sunshade Overview

• The rear left sunshade is illustrated.






1 Rear Door Trim

• Removing and installing, refer to => [ Rear Door Trim ] Rear Door Trim.

2 Bolt

• 1.2 Nm

• For the sunshade.

• Quantity: 4

3 Sun Shade

• For the door window.

• Removing and installing, refer to => [ Door Window Sun Shade ] Door Window Sun Shade.

4 Bolt

• 1.2 Nm

• For the sunshade.

• Quantity: 3

5 Mount

• For the sunshade.

• Removing and installing, refer to => [ Sun Shade Mount ] Sun Shade Mount.

6 Bolt

• 1.3 Nm

• For the mount.

• Quantity: 2

7 Guide Strip

• Removing and installing, refer to => [ Door Window Sun Shade ] Door Window Sun Shade.
