Window Guide

Window Guide

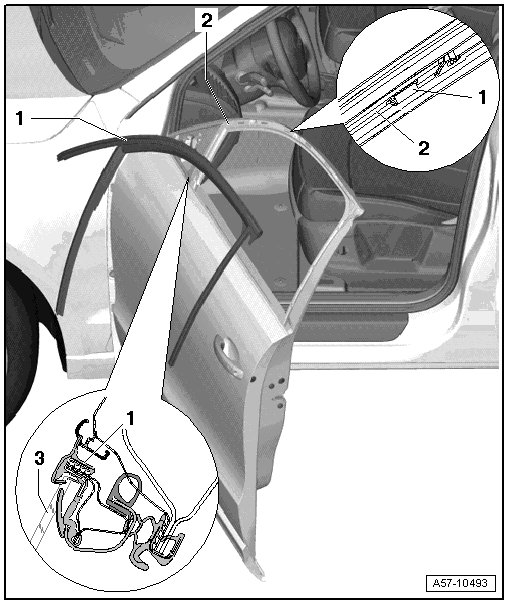

1 Window Guide

• Door window removed.

• Beginning at the upper window guide, as well as on the A-pillar and B-pillar, remove it from the door.

• Remove the window guide from the door.

• To make it easier to install, spray the window guide with soap solution.

• Push the window guide into the guide shafts as illustrated below.

• Press the window guide and retaining tabs into the door as illustrated above.

2 Door

3 Door Window
