Windshield Washer System Overview

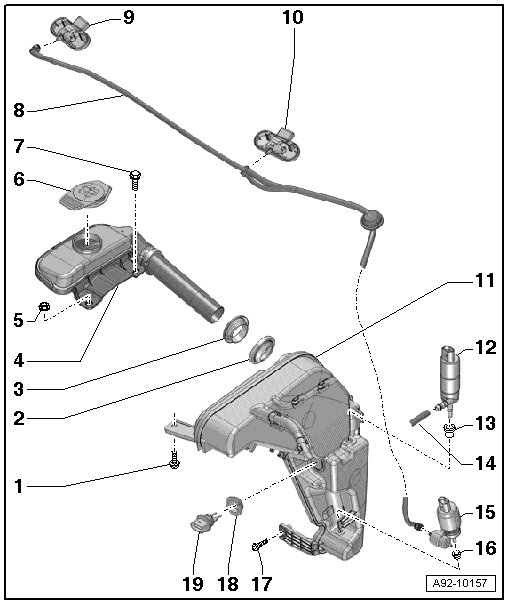

Windshield Washer System Overview






1 Screw

2 O-ring

• Replace if damaged

3 Sealing Grommet

• Replace if damaged

4 Fuel Filler Tube

• For washer fluid reservoir

• Removing and installing, refer to => [ Washer Fluid Reservoir Filler Neck ] Washer Fluid Reservoir Filler Neck

5 Nut

• 7 Nm

6 Cover

• For the filler neck

7 Screw

• 7 Nm

8 Water Hose

• For windshield washer system

9 Right Washer Nozzle

• Depending on equipment, with Right Washer Nozzle Heater (Z21)

• Removing and installing, refer to => [ Windshield Washer Spray Nozzles ] Windshield Washer Spray Nozzles

• Adjusting, refer to => [ Windshield Washer Spray Nozzles, Adjusting ] Windshield Washer Spray Nozzles, Adjusting

10 Left Washer Nozzle

• Depending on equipment, with Left Washer Nozzle Heater (Z20)

• Removing and installing, refer to => [ Windshield Washer Spray Nozzles ] Windshield Washer Spray Nozzles

• Adjusting, refer to => [ Windshield Washer Spray Nozzles, Adjusting ] Windshield Washer Spray Nozzles, Adjusting

11 Washer Fluid Reservoir

• Removing and installing, refer to => [ Washer Fluid Reservoir ] Washer Fluid Reservoir

12 Headlamp Washer System Pump (V11)

13 Sealing Grommet

• Replace if damaged

14 Water Hose

• For headlamp washer system

15 Windshield Washer Pump (V5)

• Removing and installing, refer to => [ Windshield Washer Pump (V5) ] Service and Repair

16 Sealing Grommet

• Replace if damaged

17 Screw

18 Sealing Grommet

• Replace if damaged

19 Windshield Washer Fluid Level Sensor (G33)

• Removing and installing, refer to => [ Windshield Washer Fluid Level Sensor (G33) ] Service and Repair

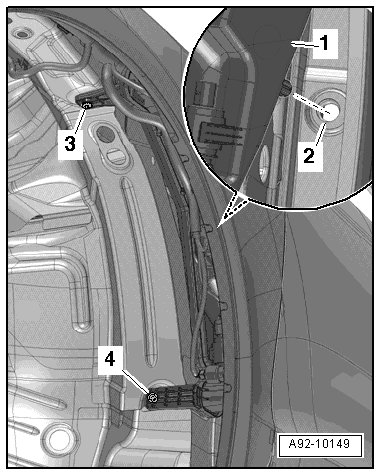

Washer Fluid Reservoir, Tightening Specifications and Sequence






- Tighten the washer fluid bolts in the sequence specified:

- Tighten the bolt - 3 - to 7 Nm.

- Tighten the bolt - 4 - to 7 Nm.
