Distance Sensor: Service and Repair

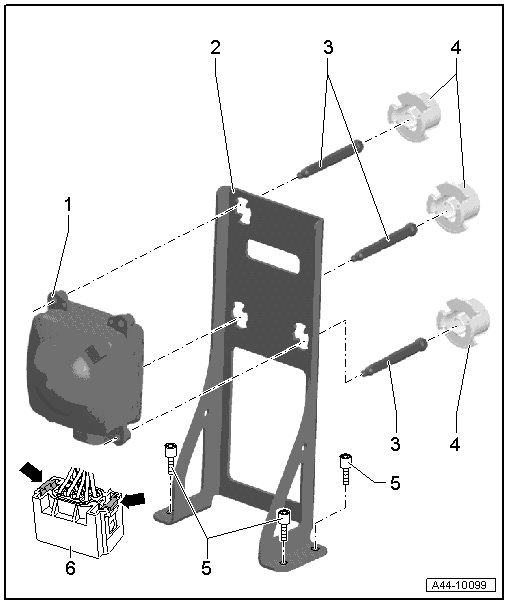

Adaptive Cruise Control Sensor (G550) Overview






1 Adaptive Cruise Control Sensor (G550)

• Removing and installing, refer to => [ Adaptive Cruise Control Sensor (G550) ] Removal and Replacement.

2 Bracket

3 Stud

• Observe adjustment dimension when installing, refer to => [ Measure Dimension of all Studs. ] Removal and Replacement

4 Nut

5 Bolt

• 8 Nm

6 Connector

• To disengage, compress both clamps - arrows -.
