Vent Frame, Checking

Vent Frame, Checking

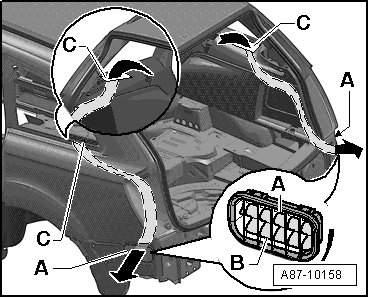

- Check for blockage of the air ducts between the vent grilles - C - of the luggage compartment lining (left and right) and the two vent frames - A -.






• Sealing lips - B - in ventilation frames - A - must move freely and close by themselves.

• Blocked channels or jammed sealing lips may cause windows to fog up.

• In this illustration, ventilation frame is depicted with rear bumper removed.

• One vent frame is installed on left and right for forced air extraction.

• To ensure that sealing lips - B - close correctly, ventilation frame - A - must be installed on the correct side.

• For the passenger compartment ventilation system to function properly, the channels worked in behind the left and right luggage compartment lining to air duct to ventilation frame - A - and both ventilation grates - C - must not be blocked.
