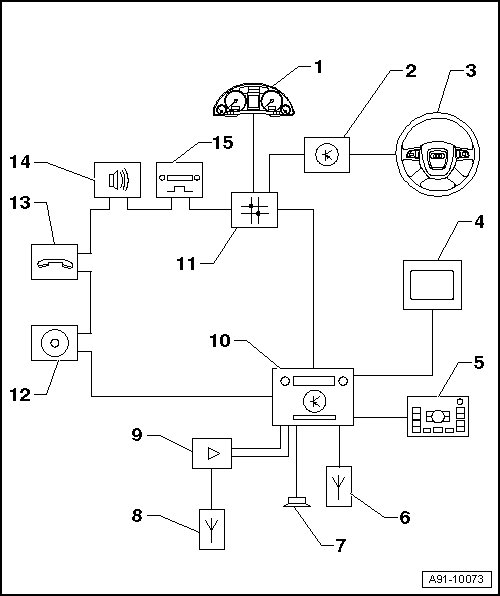

Data Bus On Board Diagnostic Interface With MMI Basic/MMI Basic Plus, Overview

Data Bus On Board Diagnostic Interface with MMI Basic/MMI Basic Plus, Overview






1 Instrument Cluster Control Module (J285)

• In instrument cluster.

2 Steering Column Electronic Systems Control Module (J527)

• On steering column.

3 Multifunction Steering Wheel

4 Front Information Display Control Head (J685)

• In the center of the instrument panel.

5 Multimedia System Control Head (E380)

• In the bottom of the center console.

6 Navigation System Antenna (R50)

• With navigation system on MMI Basic Plus.

7 Sound Systems

8 Rear Window Antennas

9 Antenna Amplifier (R24)

• Behind the C-pillar trim on the right side.

10 Front Information Display Control Head Control Module (J523)

• Behind the glove compartment.

11 Data Bus On Board Diagnostic Interface (J533)

• Gateway.

• Behind driver's side instrument panel covers.

• Removing and installing, refer to => [ Data Bus On Board Diagnostic Interface (J533) ] Data Bus On Board Diagnostic Interface (J533).

12 Media Player, Position 2 (R119)

• In front center armrest.

13 Telephone Transceiver (R36)

• Under the carpet in the front passenger footwell.

14 Digital Sound System Control Module (J525)

• With MMI Basic Plus.

• In right of luggage compartment behind side trim.

15 Digital Radio (R147)

• In right of luggage compartment behind side trim.
