Power Front Seats With Memory

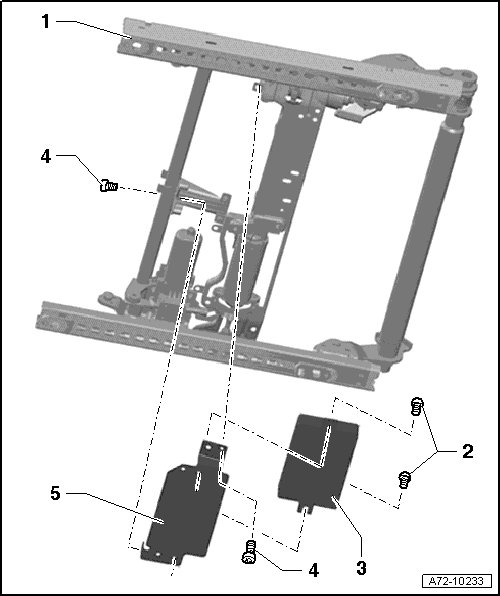

Memory Seat/Steering Column Adjustment Control Module J136 or Passenger Memory Seat Control Module J521 Assembly Overview

• For clarity purposes, the surrounding area is not shown in the illustration.






1 Front seat

• Removing and Installing, refer to => [ Driver Seat Assembly Overview ] Driver Seat Assembly Overview

2 Bolt

• 3.5 Nm

• Quantity: 2

3 Memory Seat/Steering Column Adjustment Control Module (J136) or (J521)

• Removing and Installing, refer to => [ Memory Seat/Steering Column Adjustment Control Module J136 or Passenger Memory Seat Control Module J521 ] Memory Seat/Steering Column Adjustment Control Module J136 or Passenger Memory Seat Control Module J521

4 Bolt

• 3.5 Nm

• Quantity: 2

5 Bracket

• Removing and Installing, refer to => [ Memory Seat/Steering Column Adjustment Control Module J136 or Passenger Memory Seat Control Module J521 ] Memory Seat/Steering Column Adjustment Control Module J136 or Passenger Memory Seat Control Module J521
