Steering Column Switch Module Overview

Steering Column Switch Module Overview

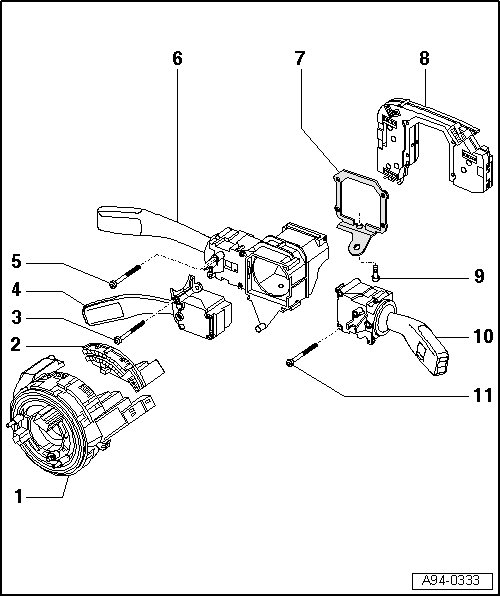

• The steering column switch module consists of coil connector with slip ring, Steering Angle Sensor (G85) , steering column switch (turn signal indicator switch, wiper switch, cruise control switch) and Steering Column Electronic Systems Control Module (J527).

• Perform Fault Finding in "Guided Fault Finding" using the Vehicle Diagnosis, Testing & Information System (VAS5051B).






1 Coil Connector With Slip Ring

Coil connector with slip ring is not to be turned following removal.

• Removing and installing, refer to => [ Airbag Spiral Spring/Return Spring With Slip Ring ] Airbag Spiral Spring/Return Spring With Slip Ring.

2 Steering Angle Sensor (G85)

• Removing and installing, refer to => [ Steering Angle Sensor (G85) ] Steering Angle Sensor (G85).

3 Socket Head Bolt - 0.65 Nm

4 Cruise Control Switch (E45)

• Removing and installing, refer to => [ Cruise Control Switch (E45) ] Cruise Control Switch (E45).

5 Socket Head Bolt - 0.65 Nm

6 Turn Signal Switch (E2)

• Removing and installing, refer to => [ Turn Signal Switch ] Turn Signal Switch.

7 Retainer

8 Steering Column Electronic Systems Control Module (J527)

• Removing and installing, refer to => [ Steering Column Electronics Control Module (J527) ] Steering Column Electronics Control Module (J527).

• Connector assignment of Steering Column Electronic Systems Control Module, refer to => [ Steering Column Electronic Systems Control Module (J527) Connector Assignment - Front ] Steering Column Electronic Systems Control Module (J527) Connector Assignment - Front.

9 Clamping Bolt - 3 Nm

10 Windshield Wiper/Washer Switch (E22)

• Removing and installing, refer to => [ Windshield Wiper/Washer Switch (E22) ] Windshield Wiper/Washer Switch (E22).

11 Socket Head Bolt - 0.65 Nm
