Automatic Transmission/Transaxle

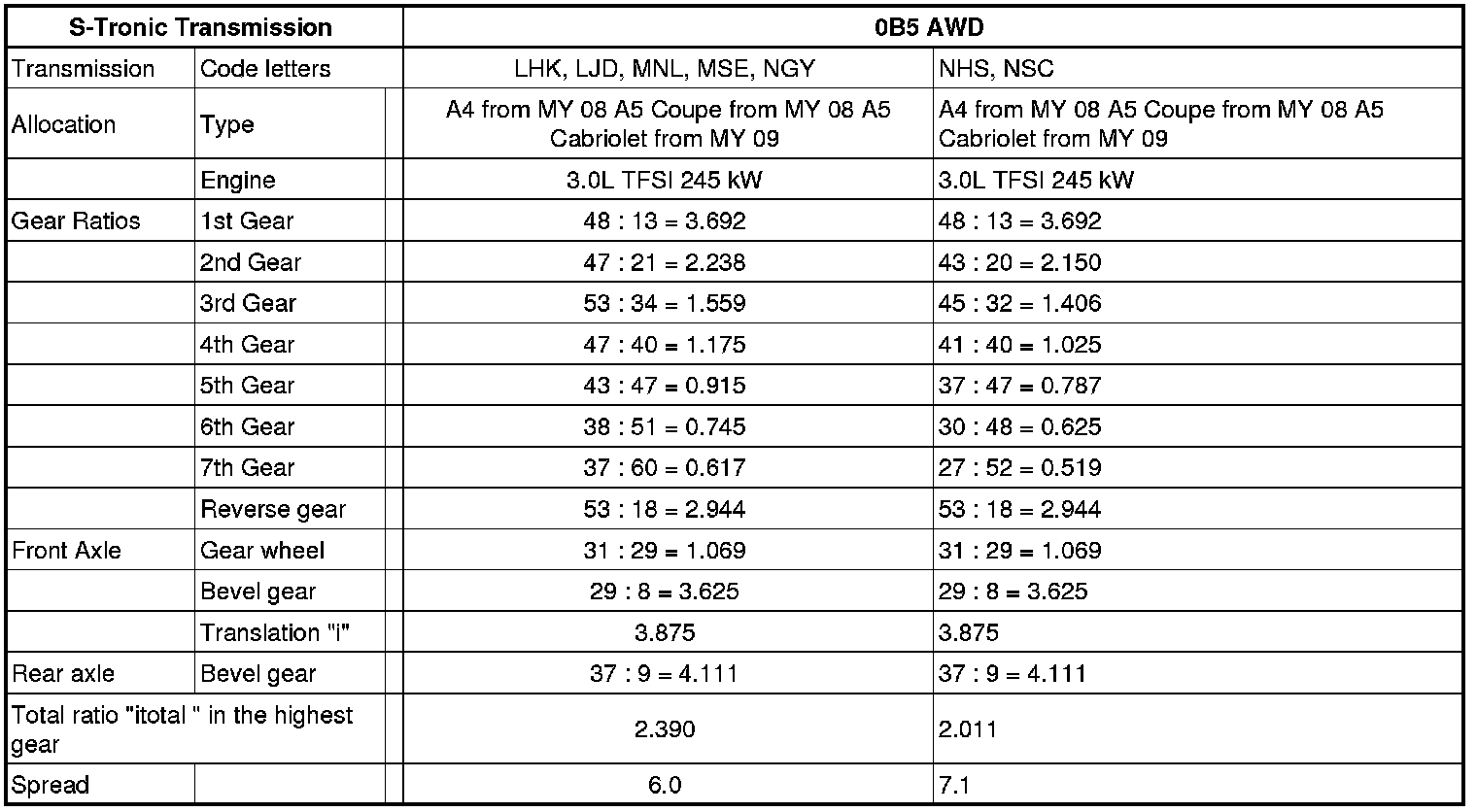

Code Letters, Transmission Allocations, Ratios and Equipment

• Transmission production time period. Refer to the Parts Catalog.

• For the correct allocation of the S-Tronic transmission 0B5 to the rear final drive, refer to the Parts Catalog.
