Flywheel

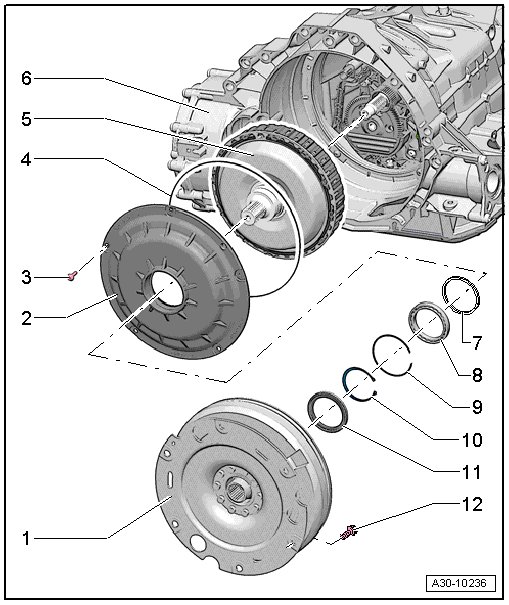

Flywheel and Dual Clutch Assembly Overview






1 Flywheel

• Refer to the Parts Catalog because there are different versions depending on the date of manufacture.

• Removing and installing, refer to => [ Flywheel ] Flywheel.


12 Bolt

• 60 Nm

• Replace
