Spring Mat Assembly Overview

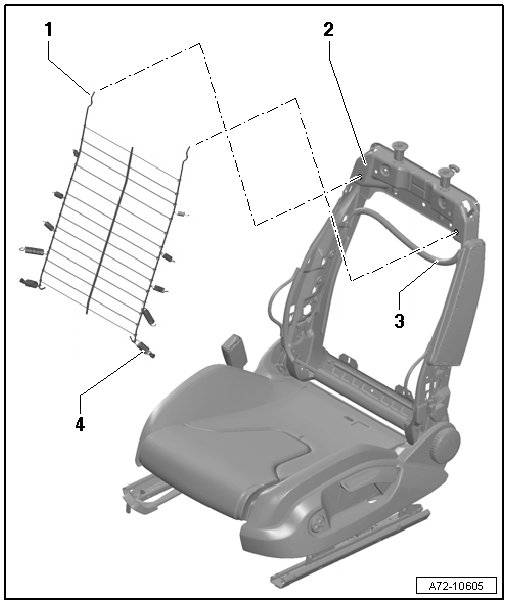

Spring Mat Assembly Overview






1 Spring mat

• Removing and Installing, refer to => [ Spring Mat ] Spring Mat

• Can be removed and installed with and without pull-springs

2 Backrest frame

3 Release cable

• With entry assist

• Coupe only

4 Pull-spring

• Each of the five pull-springs have a different number of coils

• For the correct allocation, refer to => Parts Catalog
