An Axle Alignment is Necessary When:

An Axle Alignment is Necessary When:

• Involved in an accident.

• Vehicle shows handling problems.

• Tire wear patterns are uneven.

• Axle components were removed.

A component on the front/rear axle was replaced:






• 1) if subframe was secured with Locating Pins (T10096) , axle alignment is not necessary.

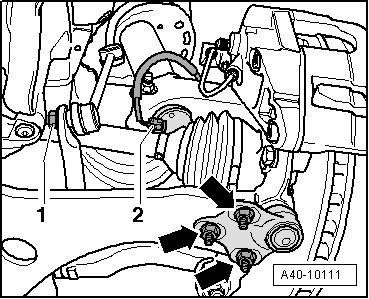

• 2)- if the location of the nuts - arrows - was marked, an axle alignment is not necessary.

A component on the front/rear axle was removed and reinstalled:






• 1) If subframe was secured with Locating Pins (T10096) , axle alignment is not necessary.






• 2)- If the location of the nuts - arrows - was marked, an axle alignment is not necessary.
