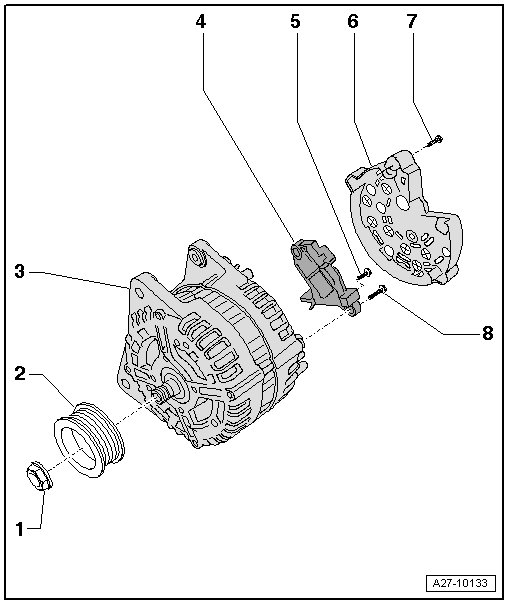

Bosch Generator Overview, From 2007

Bosch Generator Overview, from 2007

• The new generators are installed as a running change.






1 Nut

• 65 Nm

2 Ribbed Belt Pulley

3 Generator

4 Voltage Regulator

• Removing and installing, refer to => [ Voltage Regulator, Bosch Generator, from 2007 ] Voltage Regulator, Bosch Generator, From 2007.

• Carbon brushes, checking, refer to=> [ Carbon Brush, Checking, Bosch Generators from 2001 ] Carbon Brush, Checking, Bosch Generators From 2001.

5 Screw

• 1.5 Nm

6 Cover

7 Screw

• 3 Nm

8 Screw

• 2.5 Nm
