Bosch Generator Overview, Through 2000

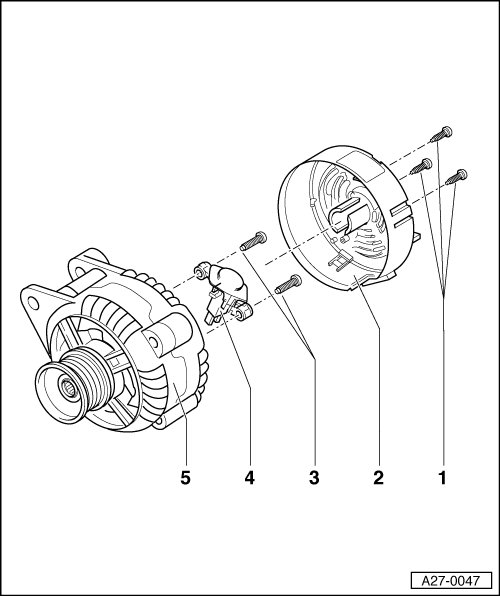

Bosch Generator Overview, through 2000






1 Bolts

• 1 Nm

2 Cover

• With 3 retaining tabs

3 Bolts

• 2 Nm

4 Voltage Regulator

• Removing:

- Remove bolts - item 1 - and remove protective cap - item 2 -.

- Remove the bolts - item 3 - and remove the voltage regulator.

• Carbon brush wear limit: 5 mm

5 Generator
