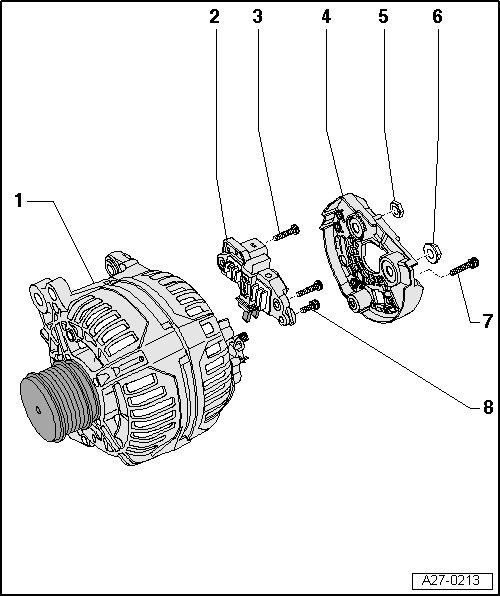

Bosch Generator Overview, from 2001

Bosch Generator Overview, from 2001

• The generators were implemented as a running change.






1 Generator

2 Voltage Regulator

• Removing and installing, refer to => [ Voltage Regulator, Bosch Generator, from 2001 ] Voltage Regulator, Bosch Generator, From 2001.

• Carbon brushes, checking, refer to=> [ Carbon Brush, Checking, Bosch Generators from 2001 ] Carbon Brush, Checking, Bosch Generators From 2001.

3 Screw

• 2.5 Nm

4 Cover

5 Nut

• 12 Nm

6 Nut

• 30 Nm

7 Screw

• 3 Nm

8 Screw

• 1.5 Nm
