65 95 ... Removing And Installing/Replacing Control Panel (Security)

65 95 ... - Removing and installing/replacing control panel (Security)





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).
Risk of damage!

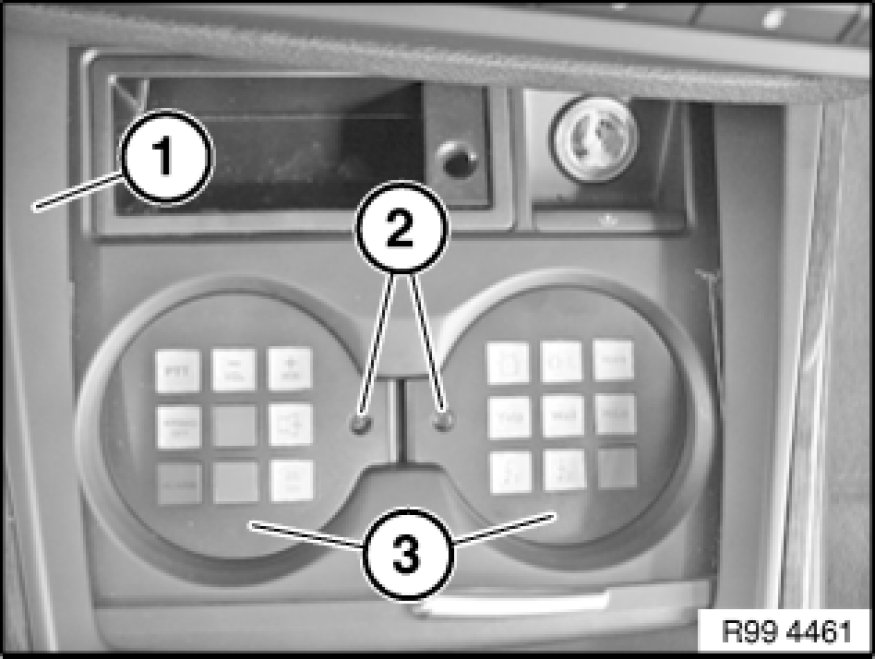

Open ashtray/storage compartment (1).
Release screws (2) and feed out control panel (3).

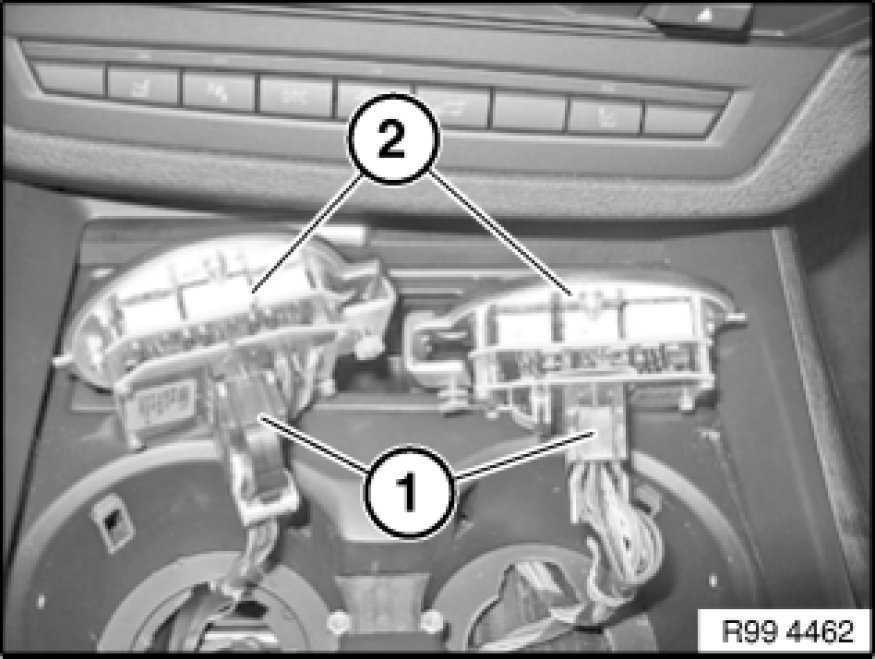

Unfasten plug connection (1) and disconnect.
Remove control panel (2).





Installation Note:
Carry out function check of intercom system.
