65 95 ... Removing And Installing/Replacing Intercom System Amplifier (Security)

65 95 ... - Removing and installing/replacing intercom system amplifier (Security)





Intercom system amplifier is mounted on lower equipment carrier (Security) Overview Of Security Control Units, Luggage Compartment.

Necessary preliminary tasks:
- Remove upper equipment carrier (Security)

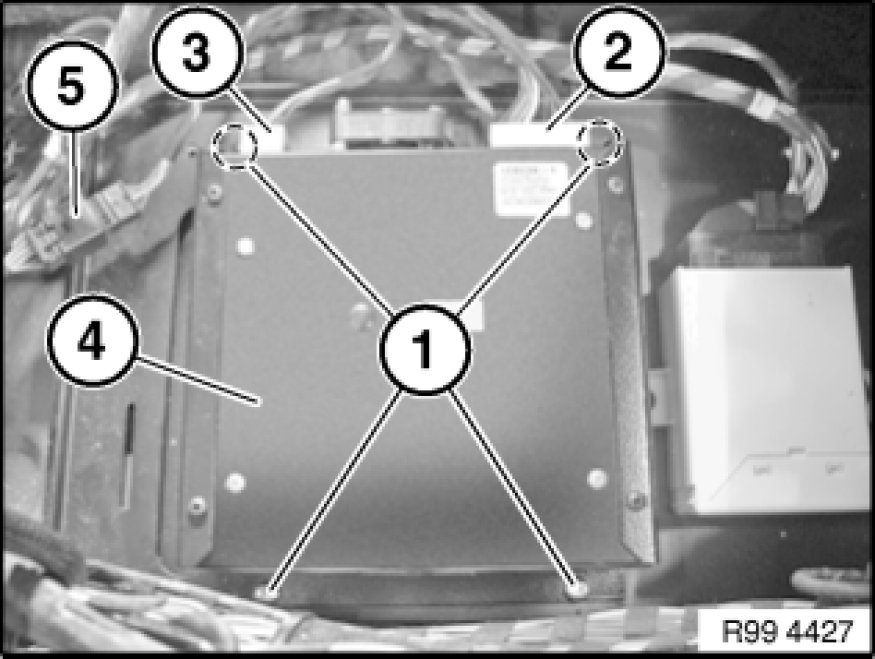

Release screws (1).
Unlock plug connections (2), (3) and (5) and disconnect.
Remove amplifier (4).





Installation:
Carry out function check of intercom system.
