65 95 ... Removing And Installing/Replacing Intercom System Inside Speaker (Security)

65 95 ... - Removing and installing/replacing intercom system inside speaker (Security)





Necessary preliminary tasks:
- Remove trim panel for pedal assembly 51 45 185 Removing and Installing/Replacing Panel For Pedals.

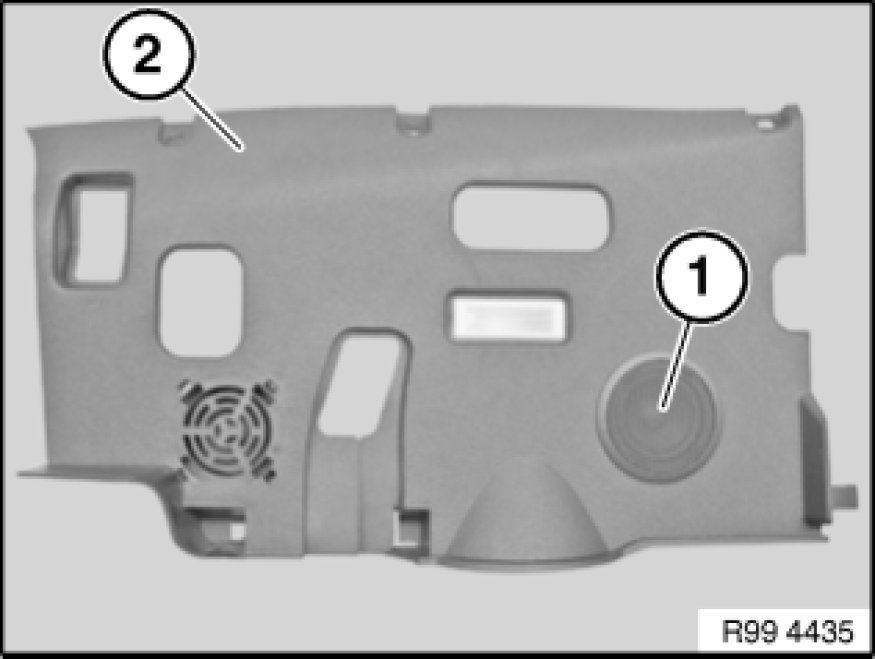

Unclip trim (1) from panel for pedals (2) with a suitable tool.

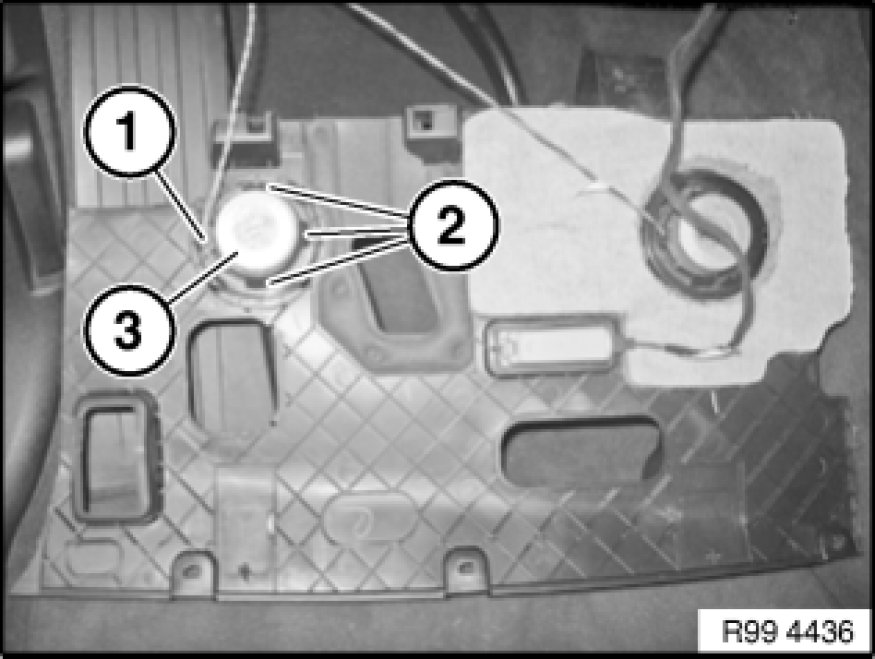

Disconnect plug connection (1).
Unclip retaining lugs (2) and remove inside loudspeaker (3) towards front.
