65 95 ... Removing And Installing/Replacing Intercom System Outside Loudspeaker (Security)

65 95 ... - Removing and installing/replacing intercom system outside loudspeaker (Security)





Necessary preliminary tasks:
- Remove bumper trim 51 11 156 Removing and Installing Front Bumper Trim in working area (front right)

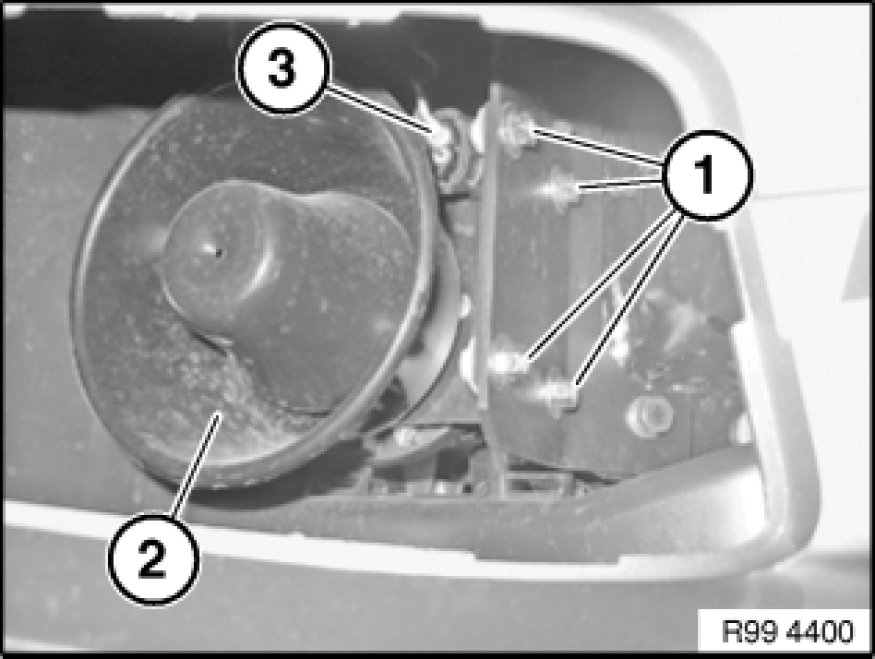

Release screws (1).
Remove outside loudspeaker (2).
Unfasten plug connection (3) and disconnect.
Feed out outside loudspeaker (2) through partially removed bumper.
