65 95 ... Removing And Installing/Replacing Sound Sequence Control Unit (Security)

65 95 ... - Removing and installing/replacing sound sequence control unit (Security)





Sound sequence control unit is mounted on lower equipment carrier (Security) Overview Of Security Control Units, Luggage Compartment.

Necessary preliminary tasks:
- Remove upper equipment carrier (Security)

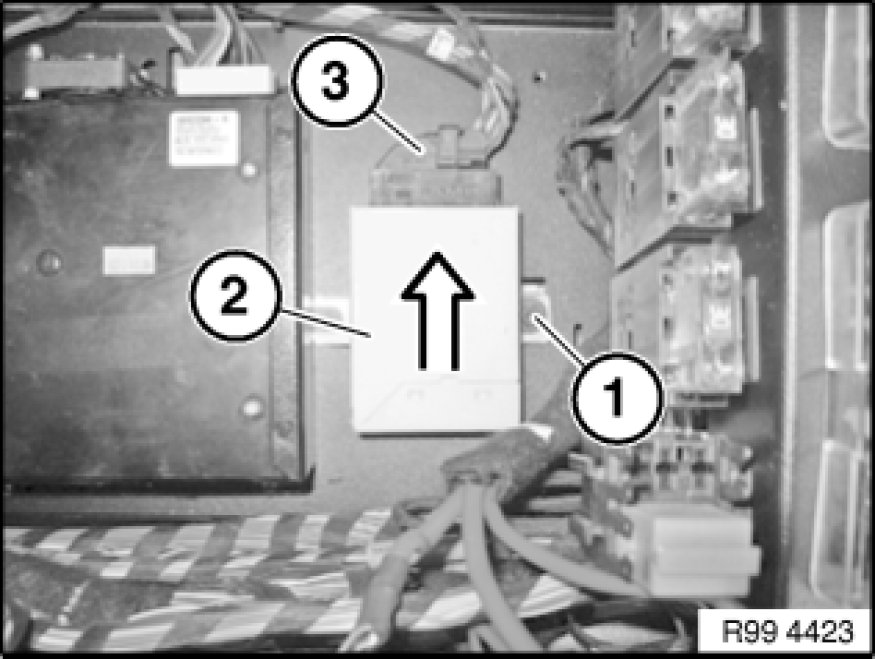

Release screw (1).
Feed out control unit (2) in direction of arrow.
Unfasten plug connection (3) and disconnect.
