Home
>>
Buick
>>
1990
>>
Electra V6-231 3.8L VIN C SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Antitheft and Alarm Systems
>>
Security Lamp/Indicator
>>
Digital
Digital

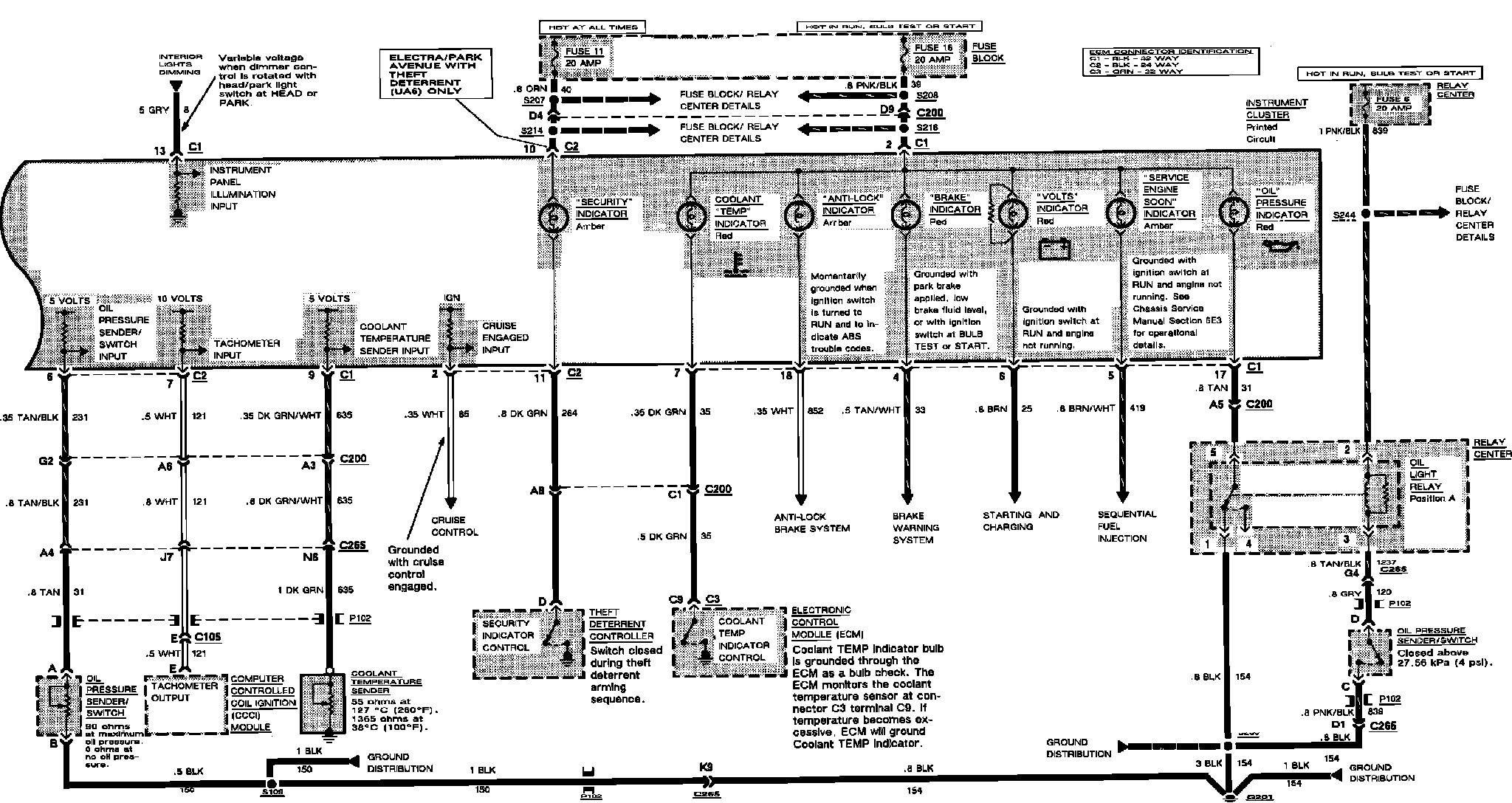

Instrument Panel Digital Cluster:
