Map Light

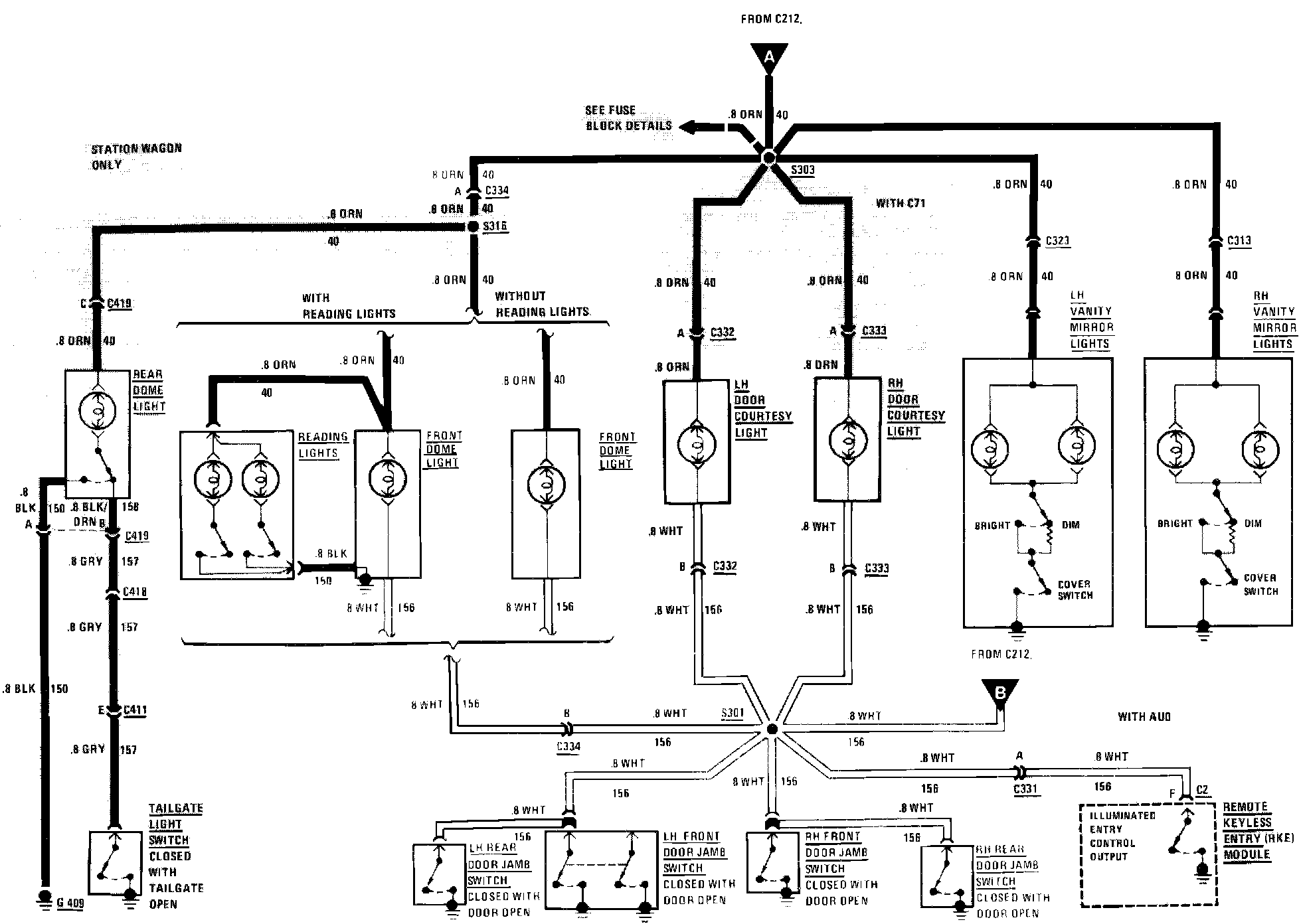

Interior Lamps: Courtesy, Underhood, Instrument Panel, Luggage, Map, Light Switch, Cigarette Lighter:

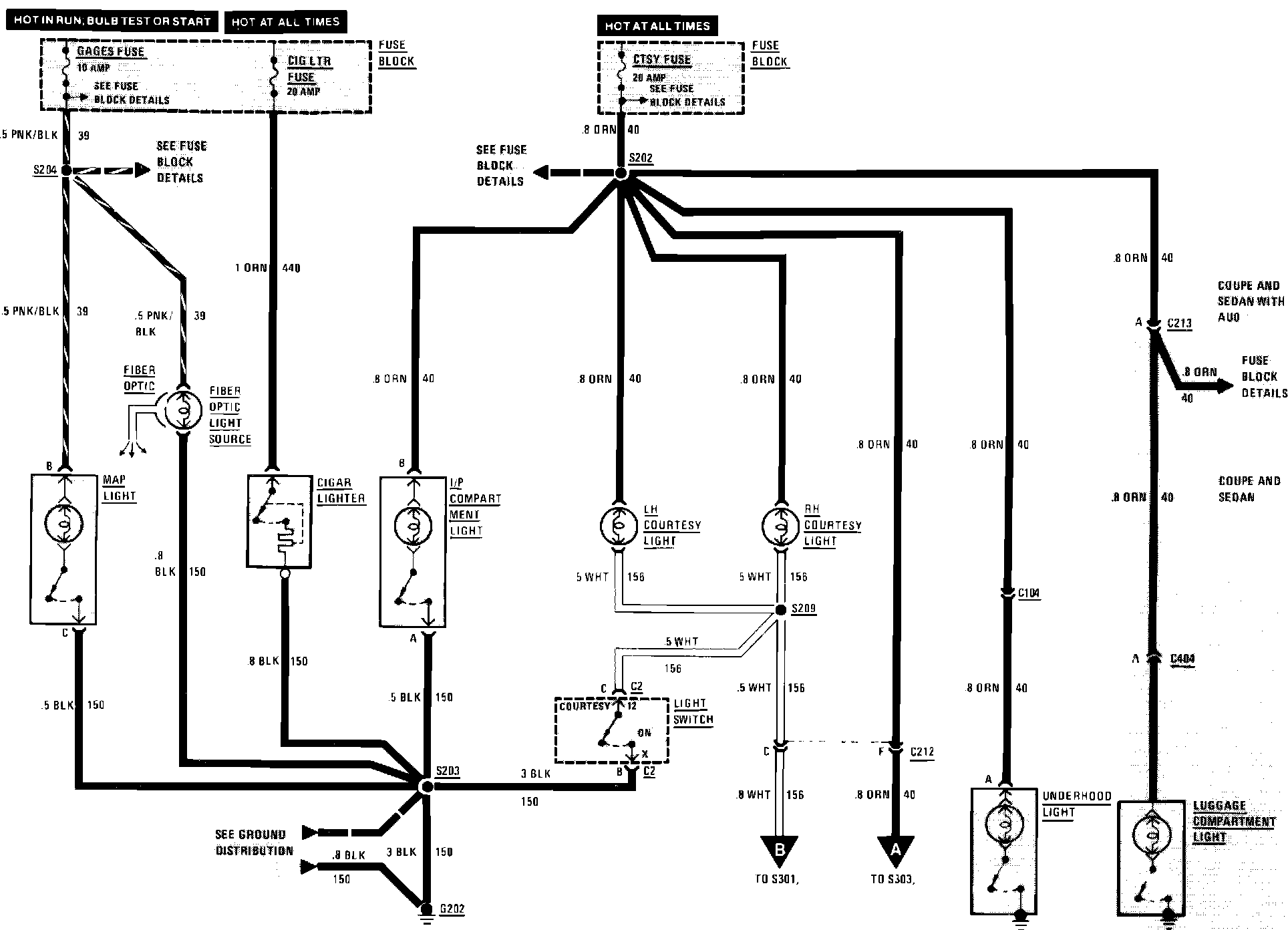

Interior Lamps: Courtesy, Underhood, Instrument Panel, Luggage, Map, Light Switch, Cigarette Lighter:
