Fuel Return Line: Service and Repair

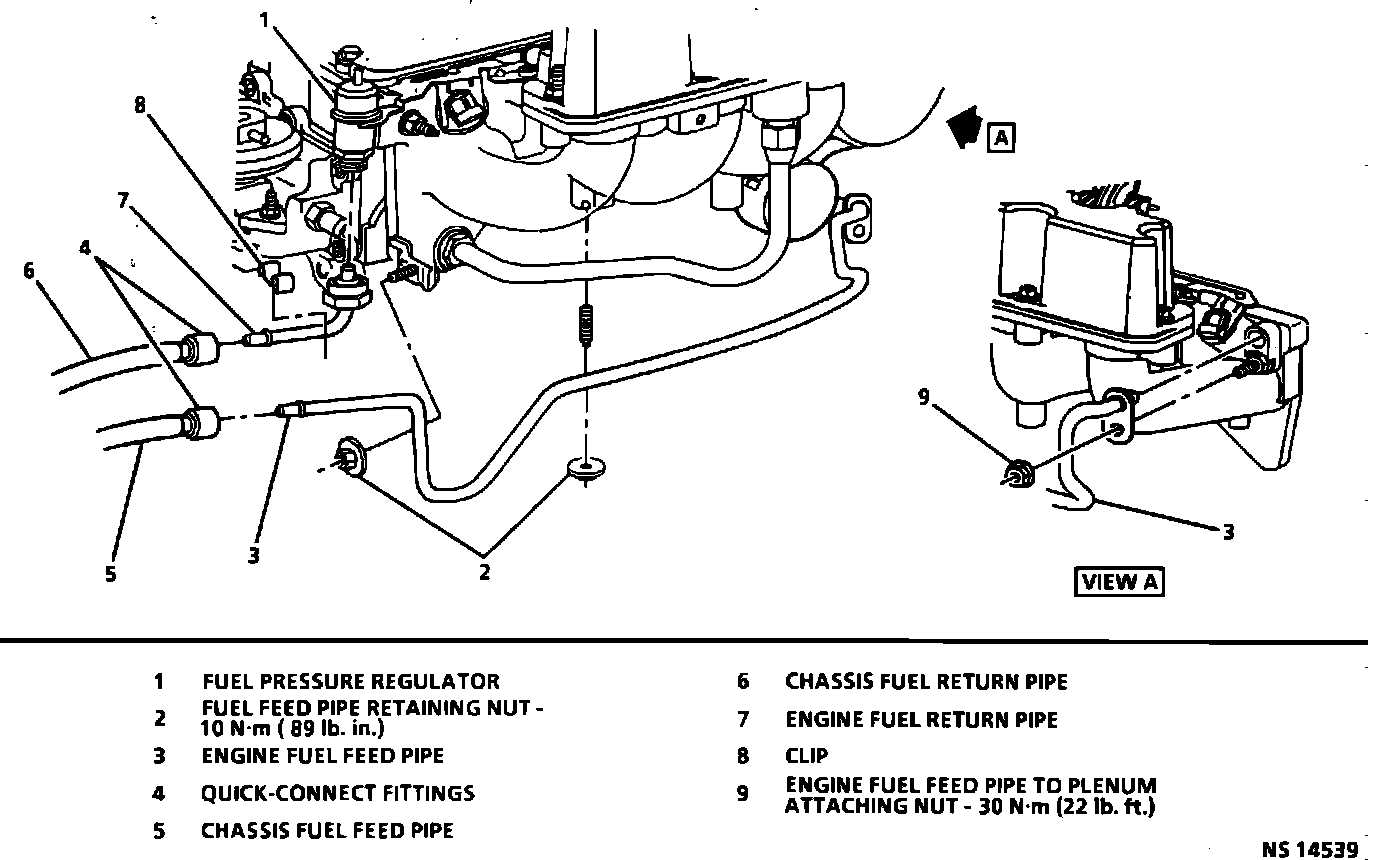

Engine Compartment Fuel Pipes:

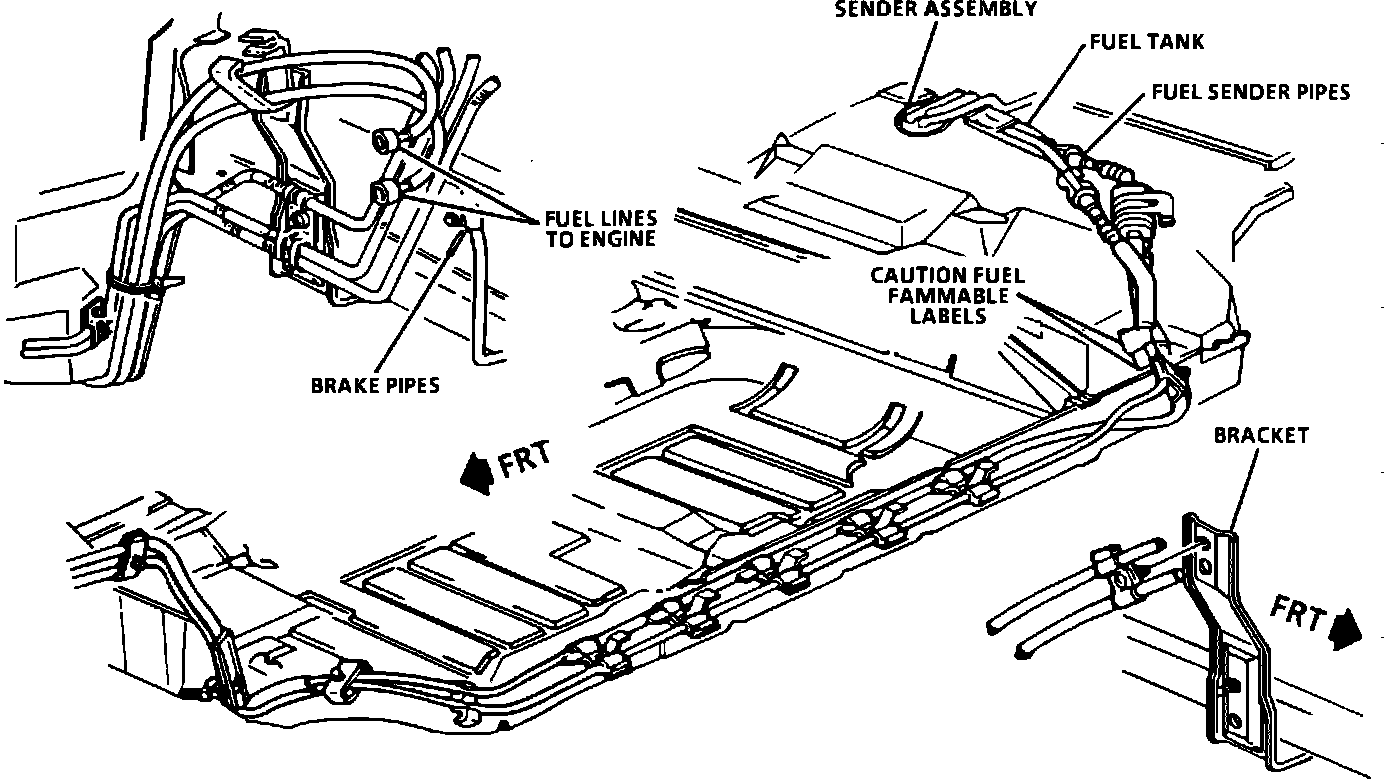

Vehicle Fuel Pipes:

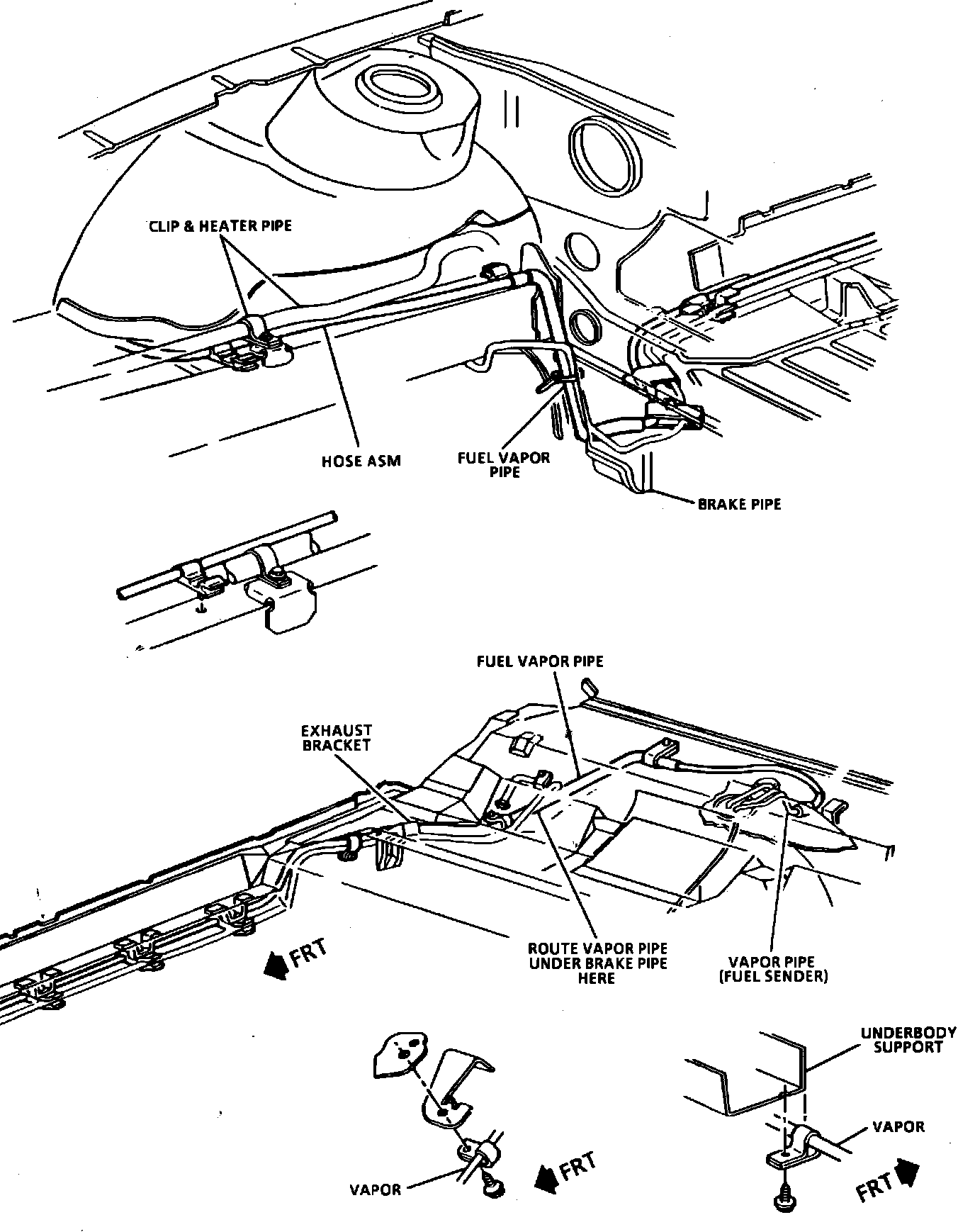

Fuel Vapor Pipes:
