Hydraulic Control Assembly - Antilock Brakes
Hydraulic Control Assembly - Antilock Brakes

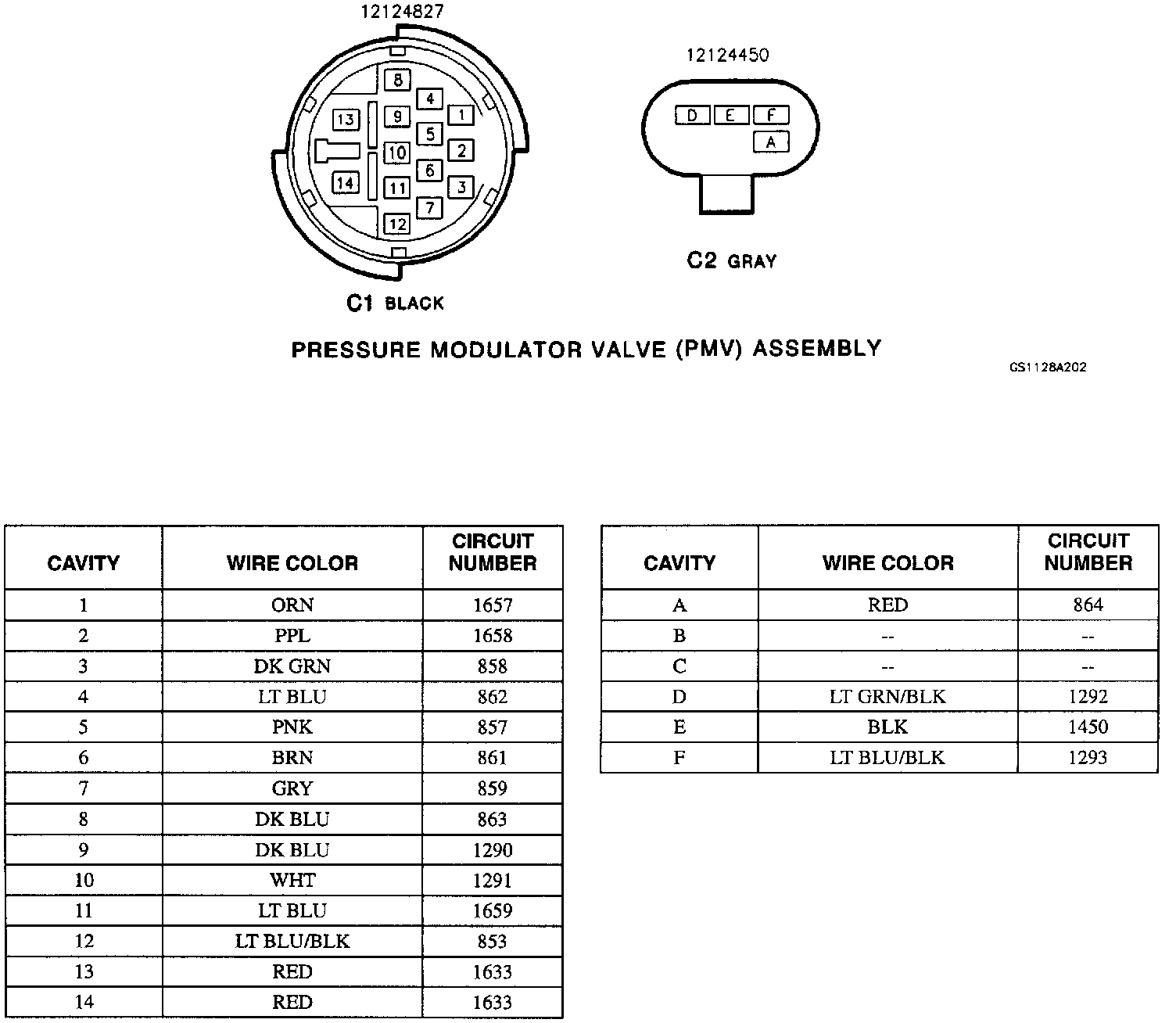

Pressure Modulator Valve (PMV) Assembly:
