Home >> Buick >> 1995 >> Riviera V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Antitheft and Alarm Systems >> Forced Entry System (RPO UA6)

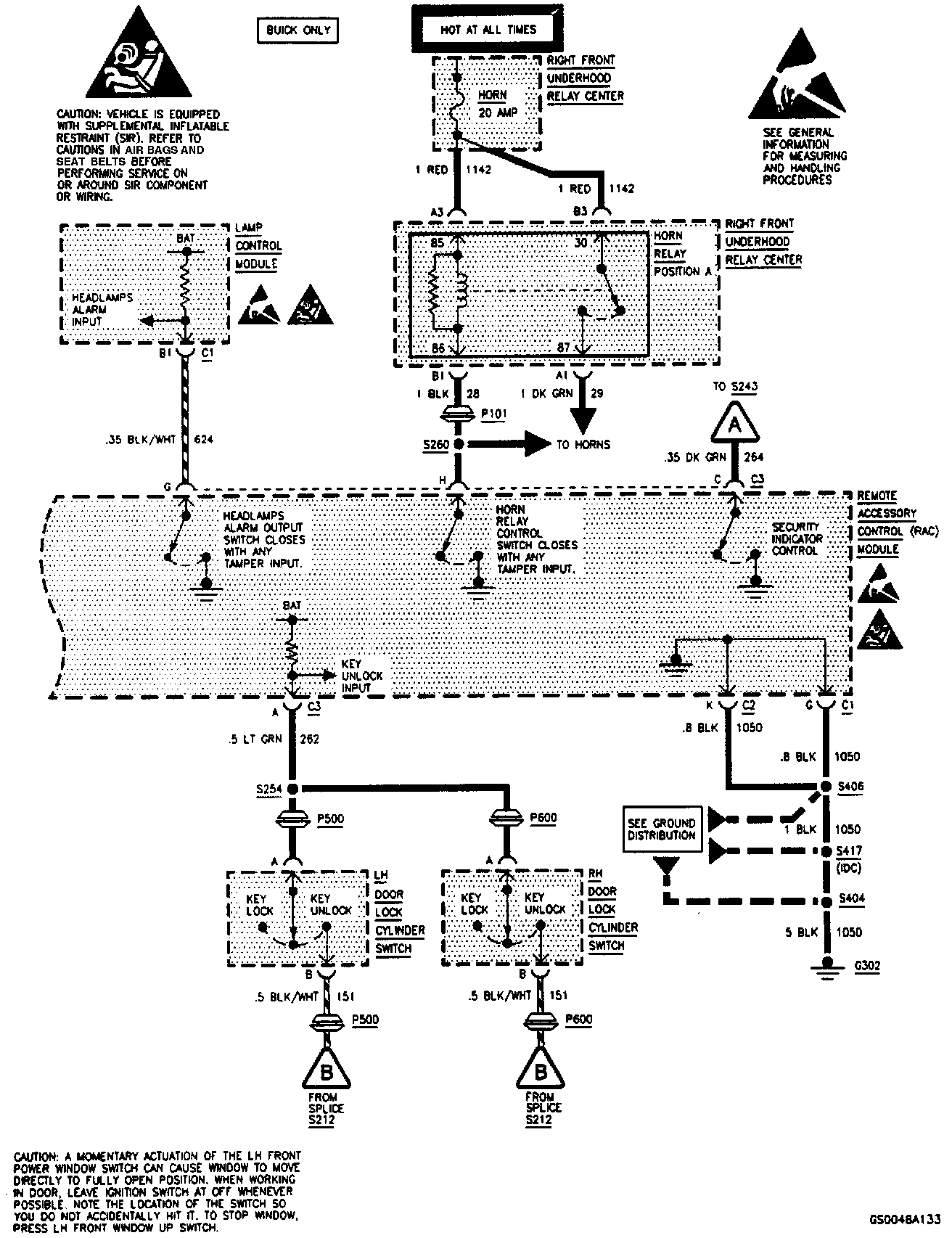

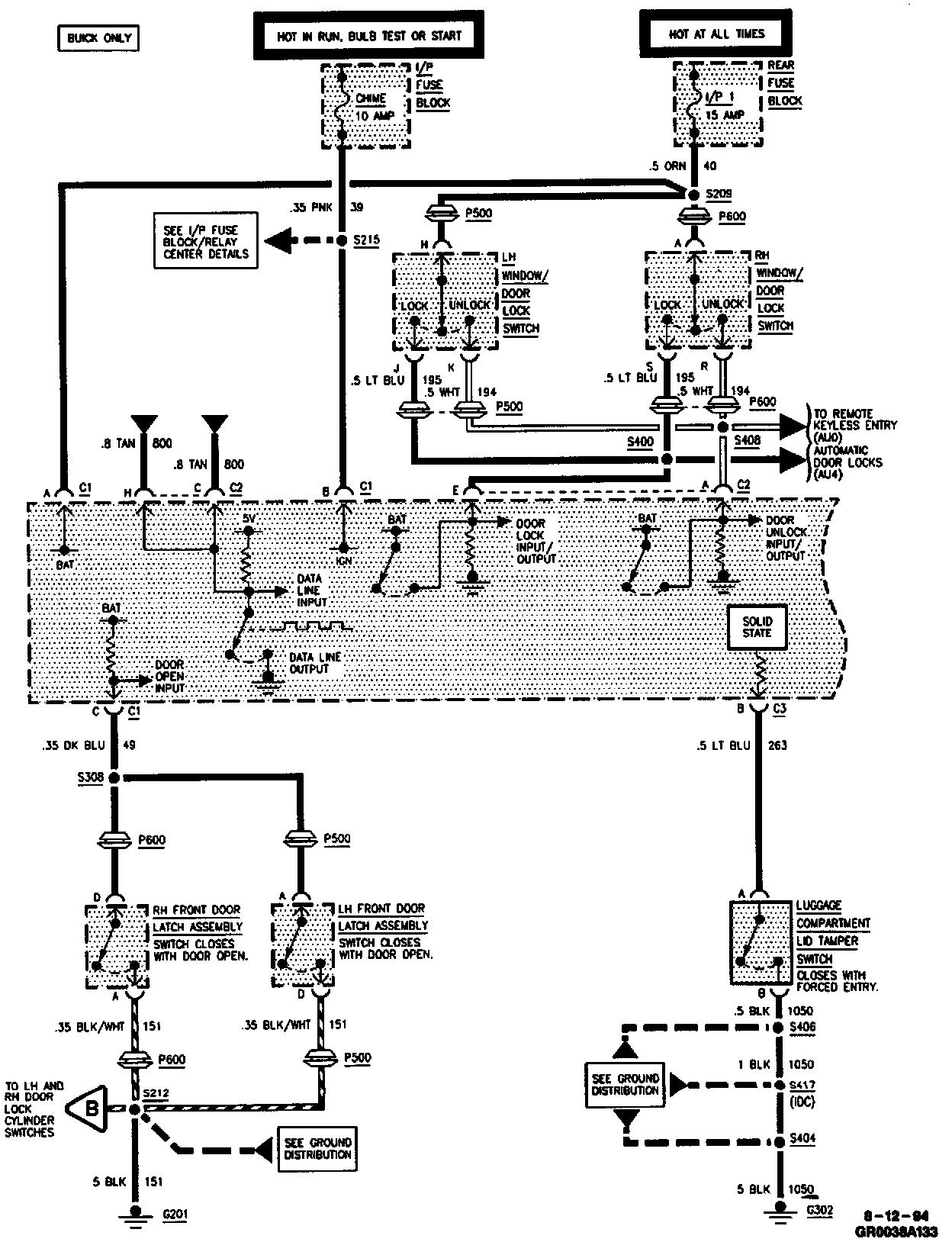

Forced Entry System (RPO UA6)

Forced Entry System (RPO UA6):



Forced Entry System (RPO UA6):
