Home >> Buick >> 1995 >> Riviera V6-3.8L SC VIN 1 >> Repair and Diagnosis >> Heating and Air Conditioning >> Refrigerant Pressure Sensor / Switch >> Locations >> Component Locations >> A/C Head Pressure Switch

A/C Head Pressure Switch

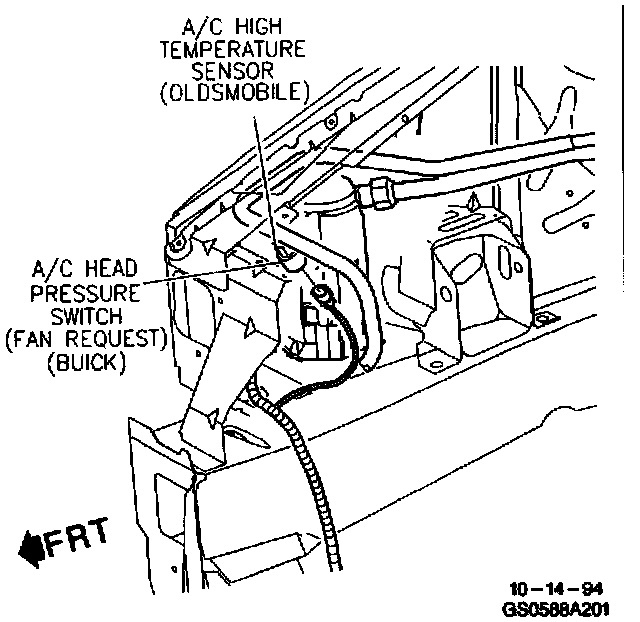

Front Of Engine Compartment, RH Side, A/C Components:



Front Of Engine Compartment, RH Side:
