Automatic Transmission/Transaxle Controls

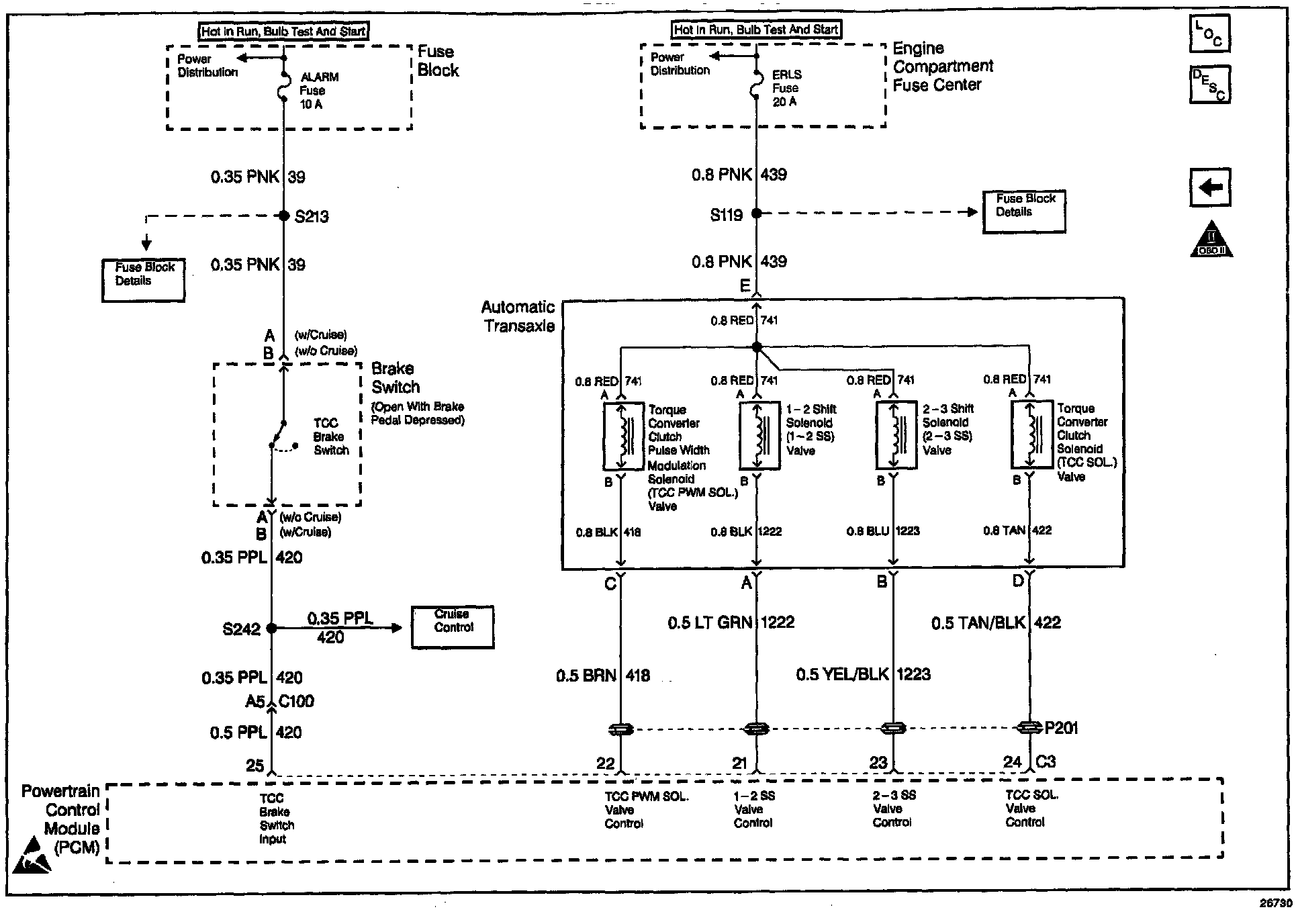

Transaxle Control:

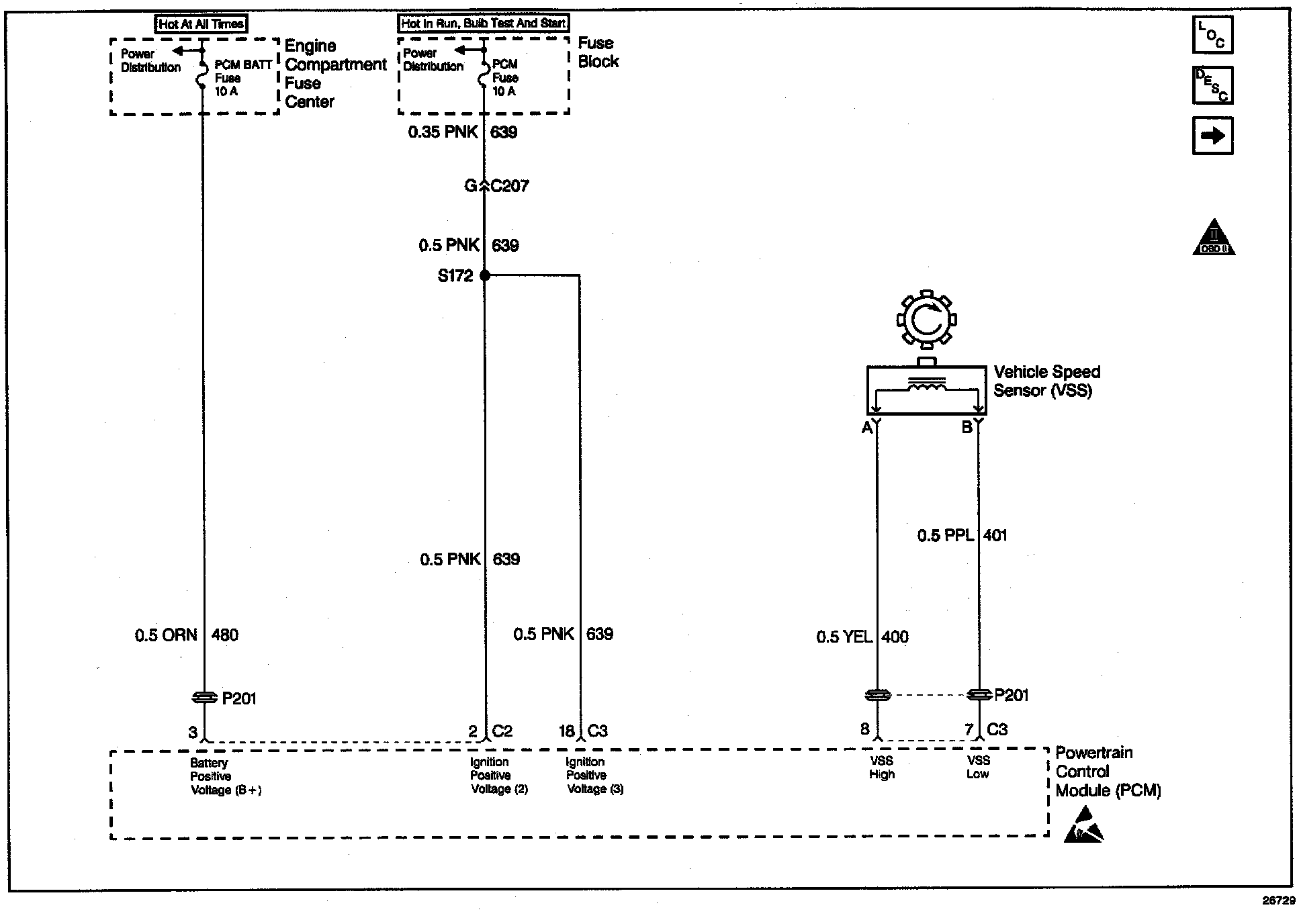

Automatic Transmission Controls - PCM Power And VSS:

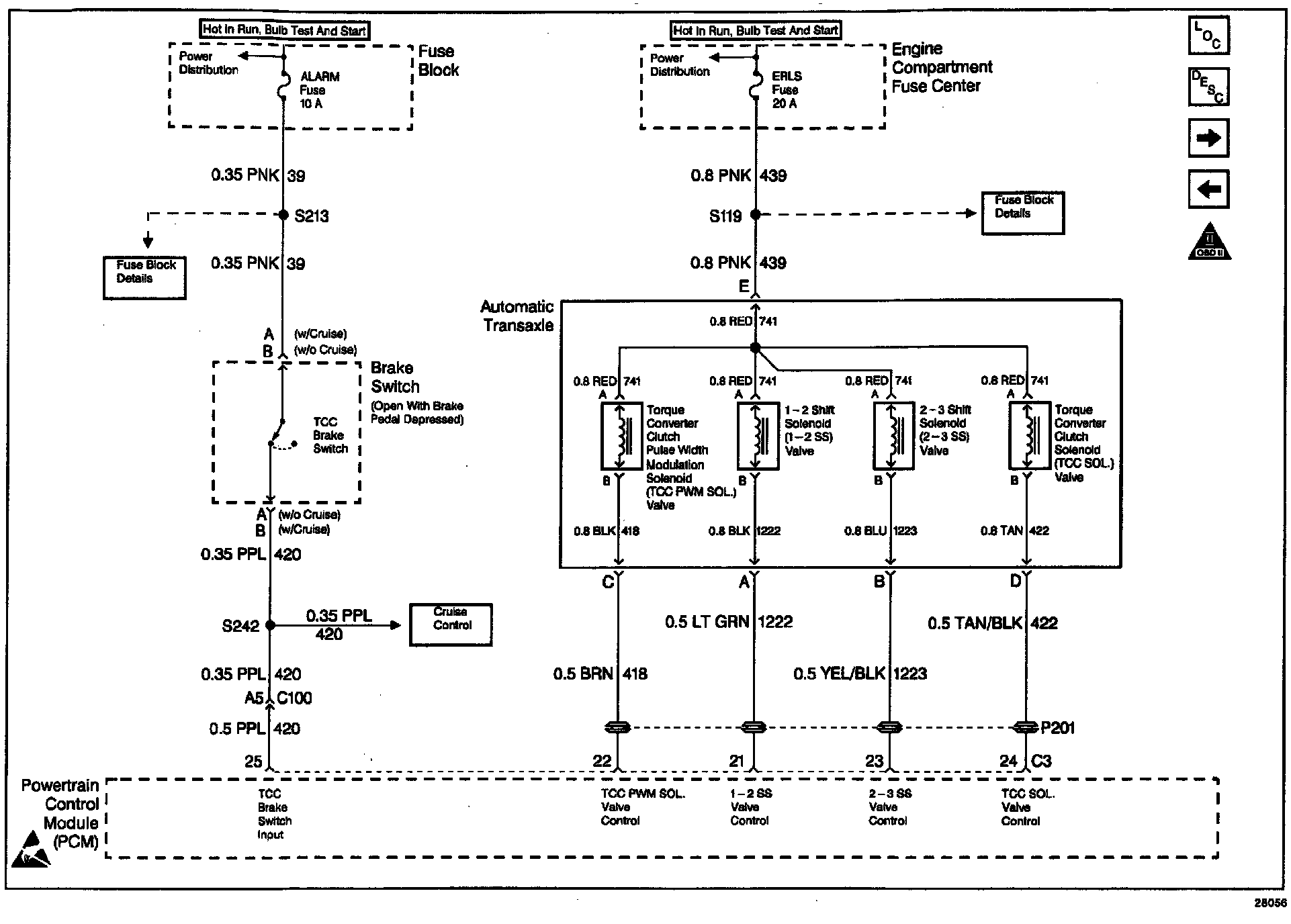

Automatic Transmission Controls - Brake Switch And Solenoids:
