Home >> Buick >> 1997 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Power Seat Switch >> RH Front

RH Front

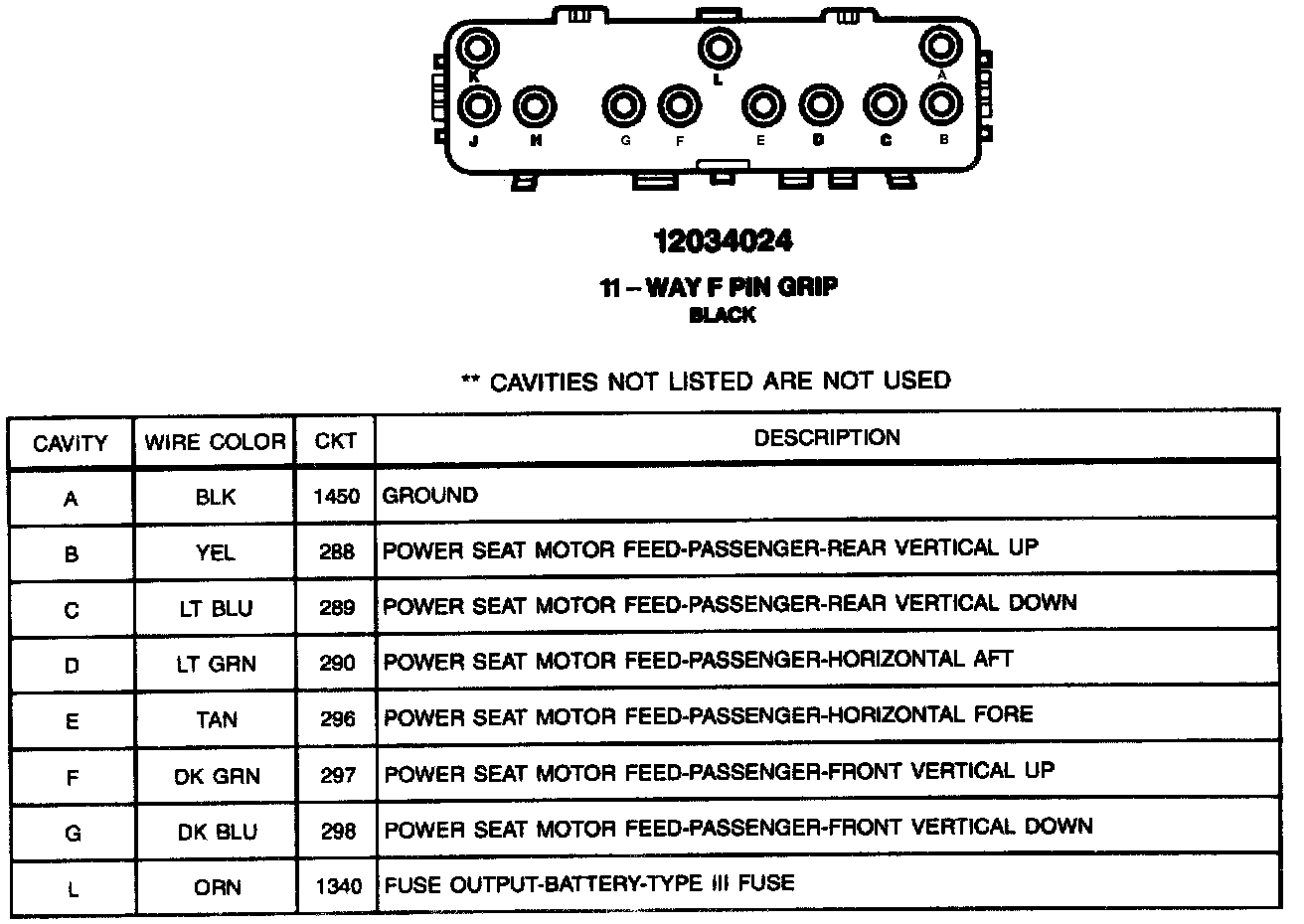

RH Front Seat Switch (With AQ7):
