Home >> Buick >> 2000 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Courtesy Lamp >> System Diagram >> LH Front Door Courtesy Lamp

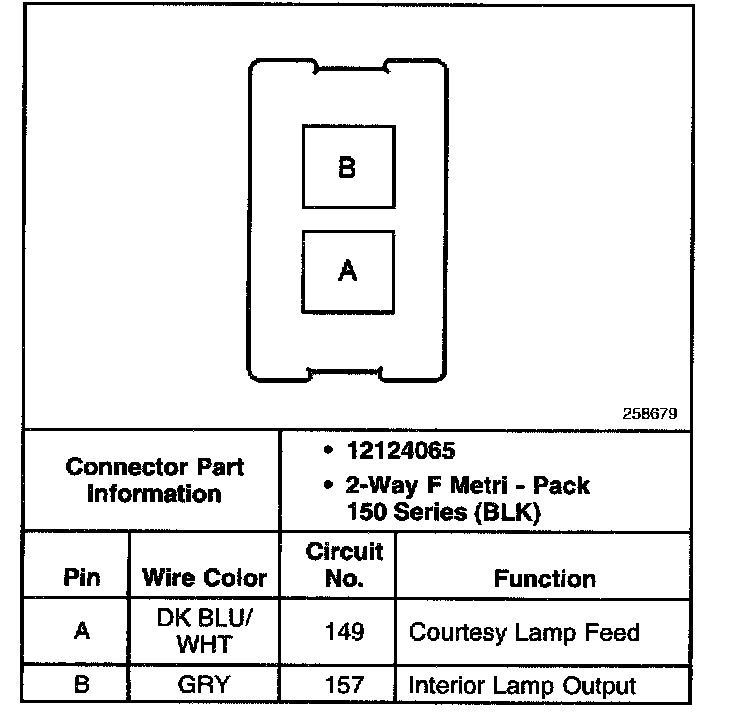

LH Front Door Courtesy Lamp

LH Front Door Courtesy Lamp:
