Home >> Buick >> 2000 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Seats >> Power Seat Motor >> Front Seat Horizontal Motor, LH

Front Seat Horizontal Motor, LH

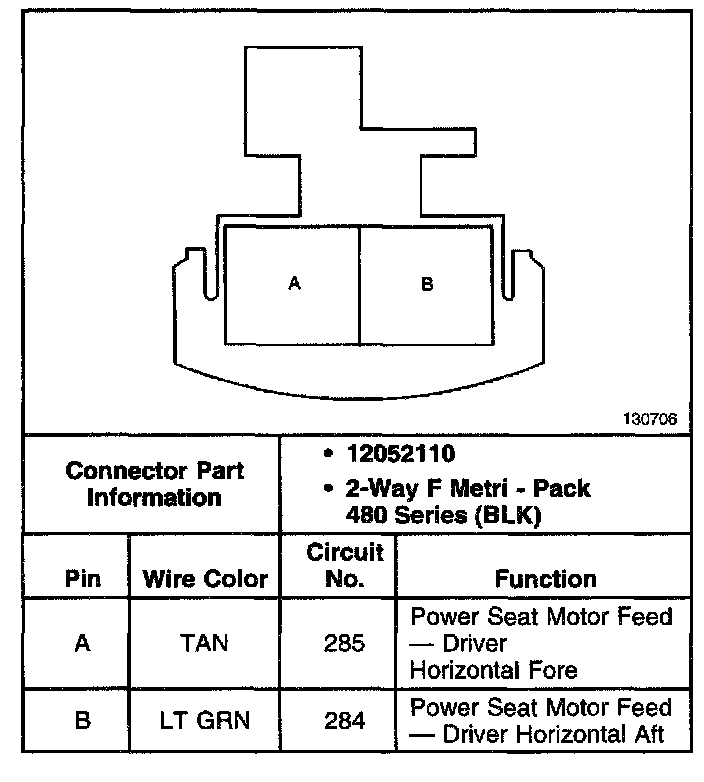

LH Front Seat Horizontal Motor:
