Home >> Buick >> 2000 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Windows >> System Diagram >> Power Windows - Front Door, RH

Power Windows - Front Door, RH

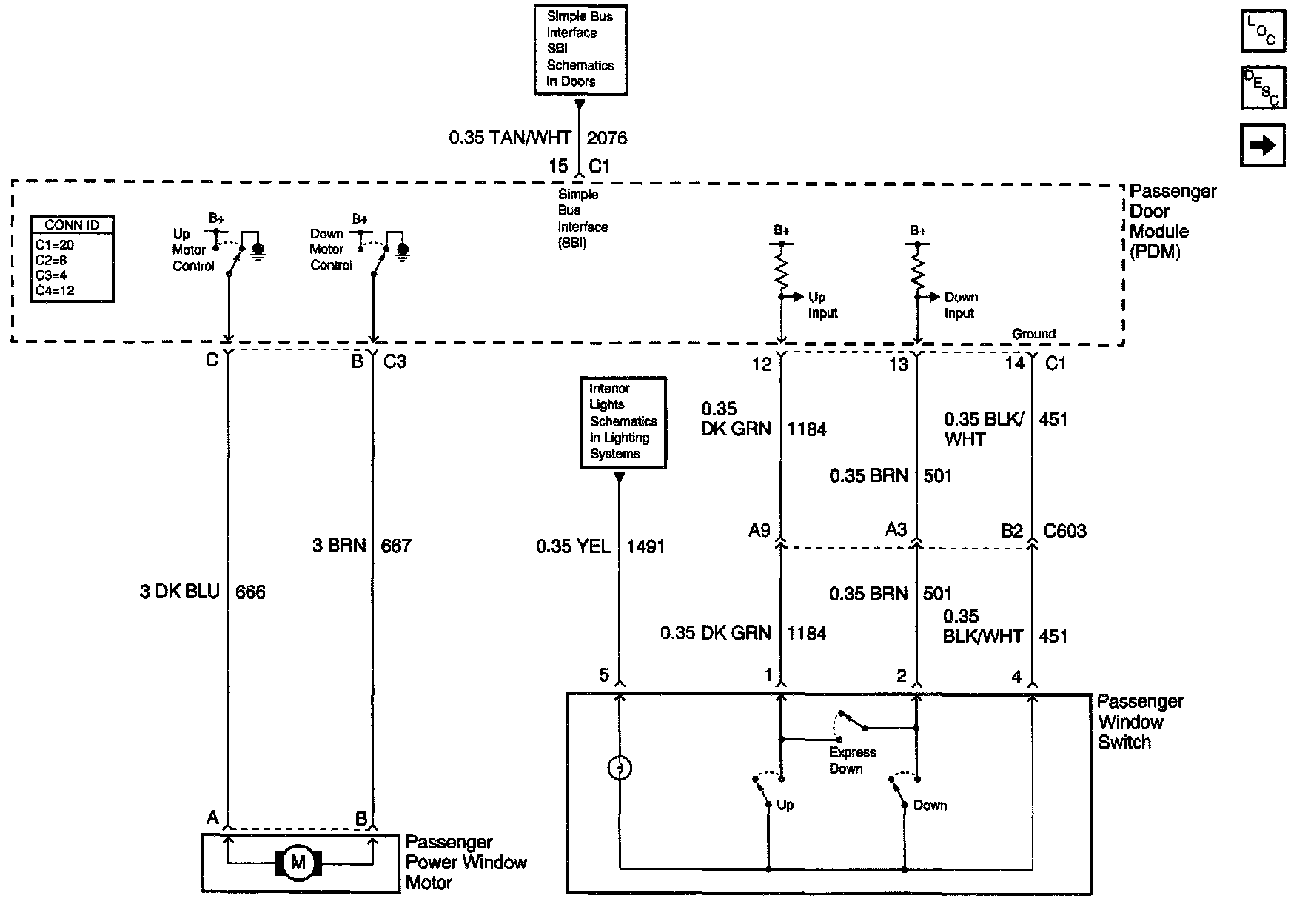

Power Window Schematics: RH Front Door:
