Muffler: Service and Repair

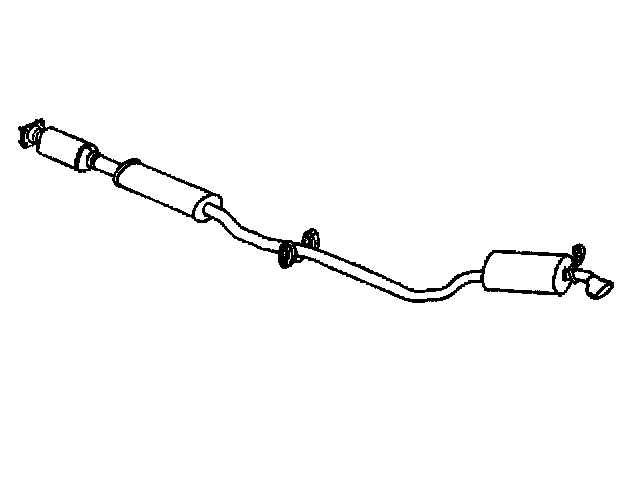

Removal Procedure

- Tools Required
- J 29800 Cut-Off Tool





1. Support the catalytic converter assembly.

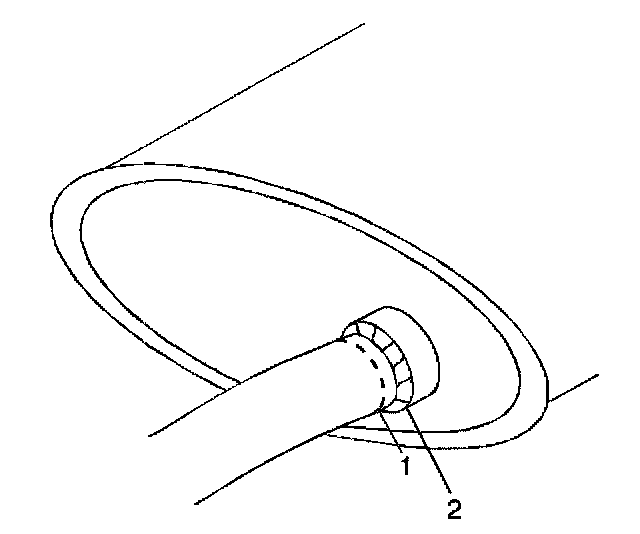

2. Cut the intermediate pipe at the muffler using the J 29800.





3. Remove the muffler hanger.
4. Remove the muffler.

Installation Procedure





1. Align the muffler.
2. Install the muffler hanger.
3. Join the catalytic converter assembly and the muffler together.
4. Align the muffler and catalytic converter assembly the to the proper clearance. Refer to Exhaust System Alignment.

Notice: Refer to Fastener Notice in Service Precautions.

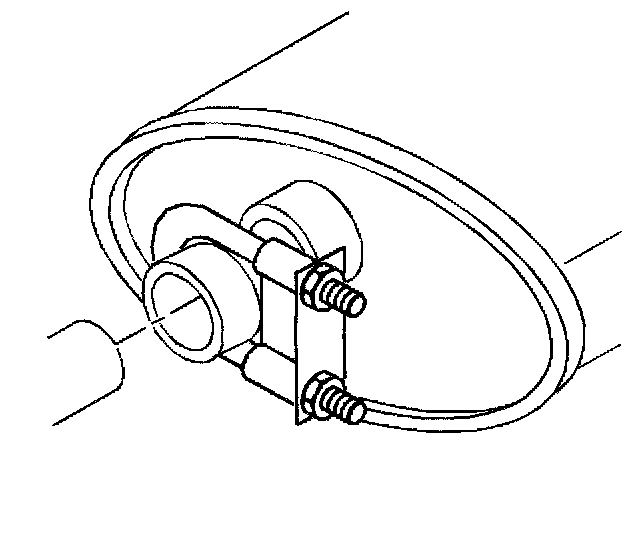

5. Install the U bolt type clamp.
- Tighten the clamp nuts to 40 Nm (30 ft. lbs.).
