Head Up Display Switch Replacement

REMOVAL PROCEDURE

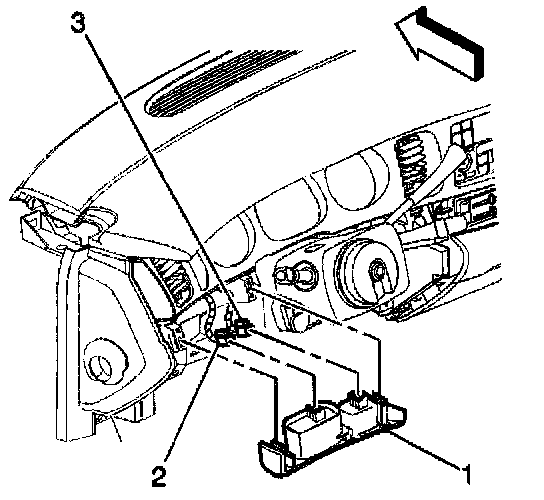

1. Remove the left IP trim plate.
2. Disconnect the electrical connector (3).
3. Remove the HUD switch from the left IP trim plate (1).

INSTALLATION PROCEDURE
1. Install the HUD switch to the IP trim plate (1).
2. Connect the electrical connector (3).
3. Install the IP trim plate.
