Fluid Pump: Service and Repair
Oil Pump ReplacementRemoval Procedure
1. Remove the case side cover. Refer to Case Side Cover Replacement.
Notice: Do NOT remove the three bolts which hold the pump together.

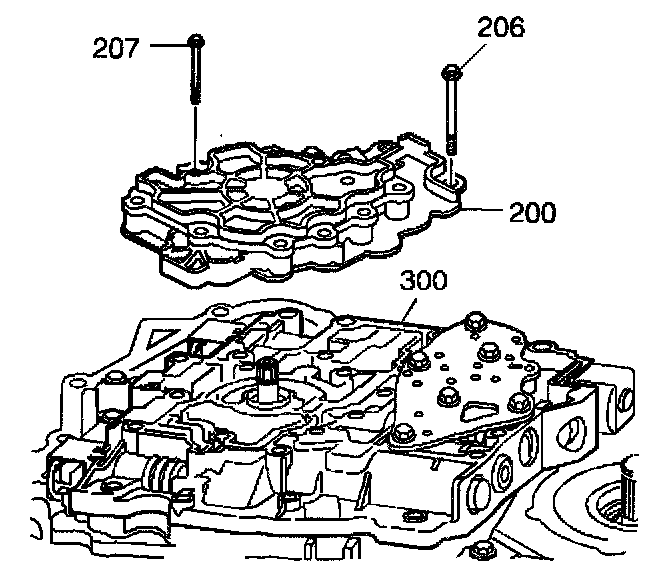

2. Remove the oil pump bolts (205-207).
3. Remove the oil pump (200) from the valve body (300).
4. Inspect the oil pump. Refer to Oil Pump Components Assemble in Transmission/Transaxle - 4T65E Unit Repair.
Installation Procedure

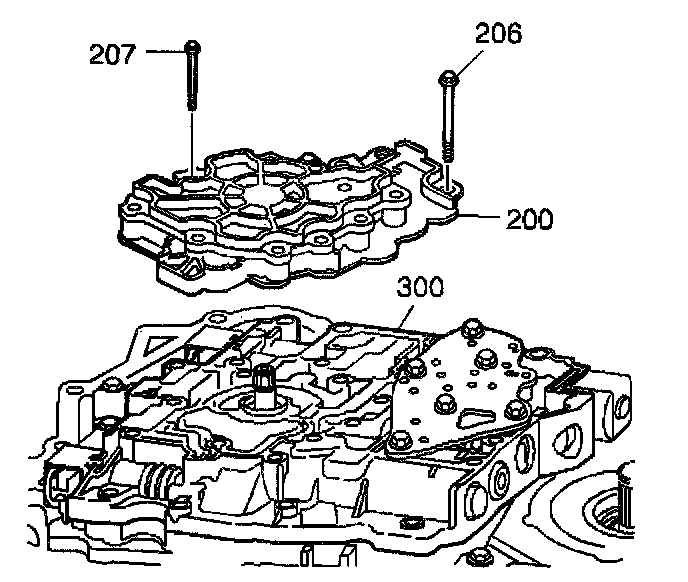

1. Install the oil pump (200) to the valve body (300).
2. Install the oil pump bolts (205-207).
^ Tighten the M6 X 1.0 X 20 bolt (205) to 8 Nm (70 inch lbs.).
^ Tighten the M6 X 1.0 X 85 bolt (207) to 12 Nm (106 inch lbs.).
^ Tighten the M6 X 1.0 X 95 bolt (206) to 12 Nm (106 inch lbs.).
3. Install the case side cover.
