Home >> Buick >> 2003 >> LeSabre V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Radio/Stereo >> Digital Radio Receiver

Digital Radio Receiver

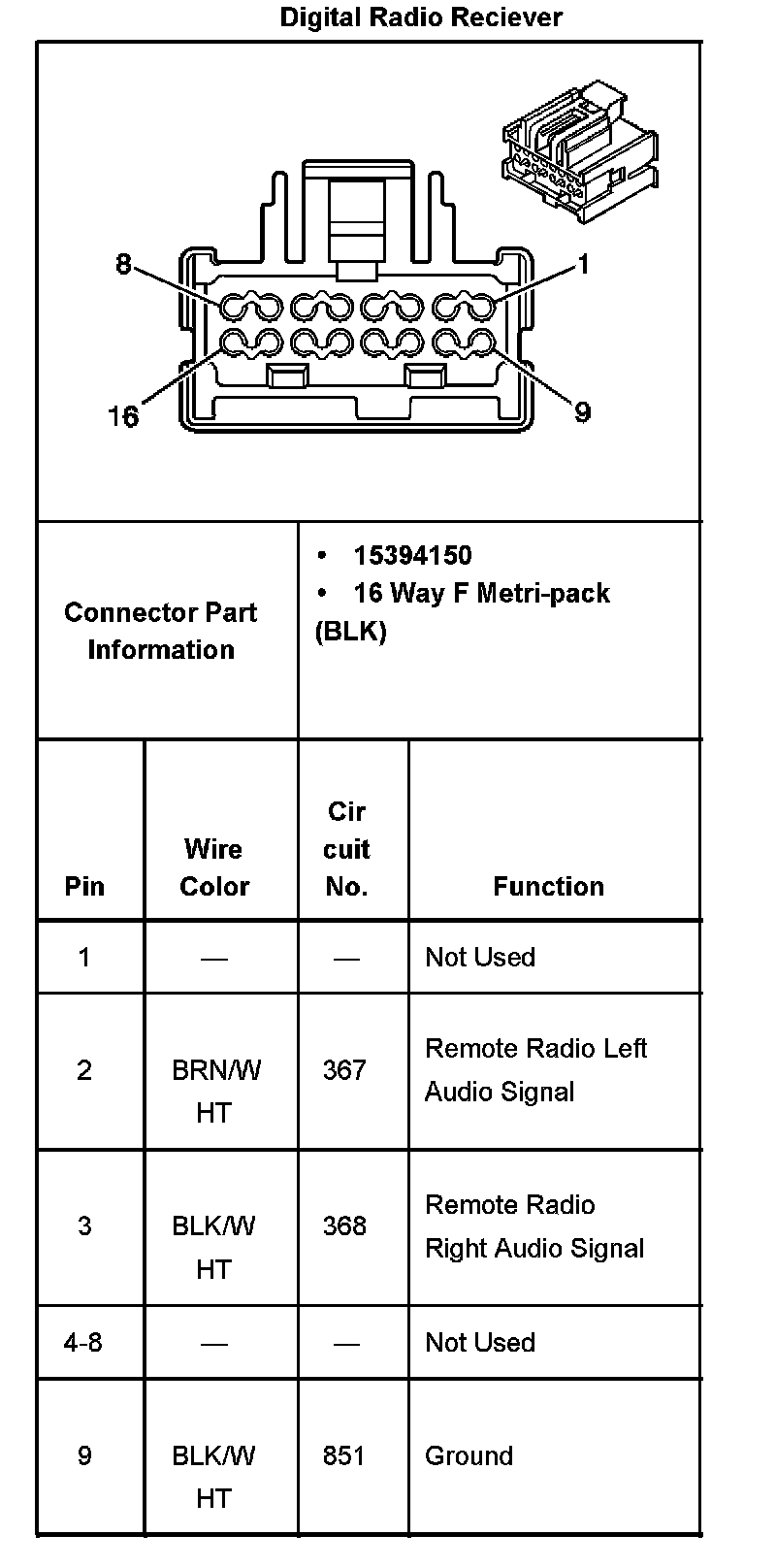

Digital Radio Reciever Part 1:

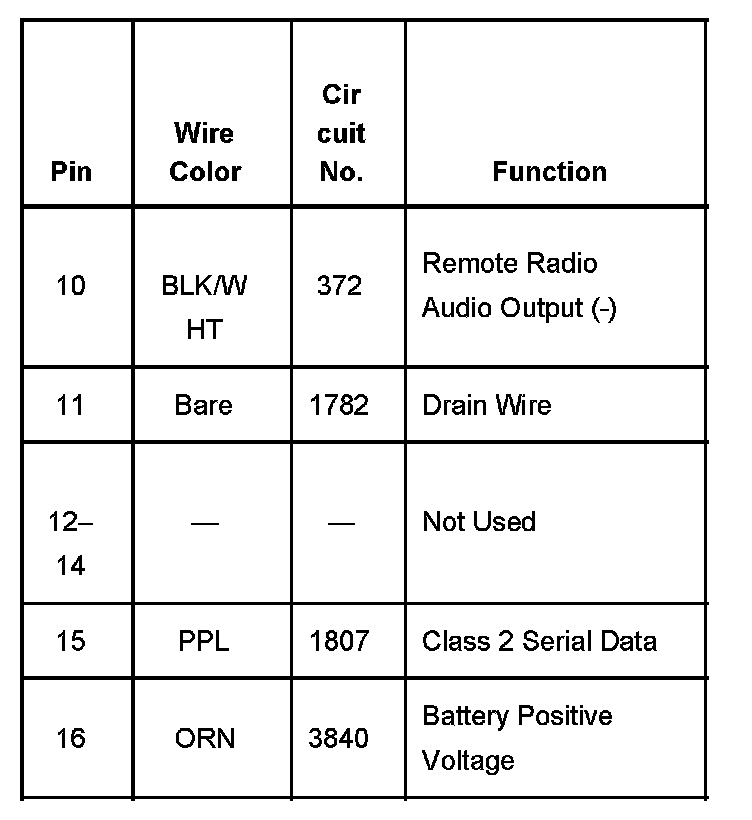

Digital Radio Reciever Part 2:
