Power Steering Return Hose Replacement (RPO L26)

Power Steering Return Hose Replacement (RPO L26)

Removal Procedure

1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the power steering gear heat shield.
3. Install a drain pan under the vehicle.

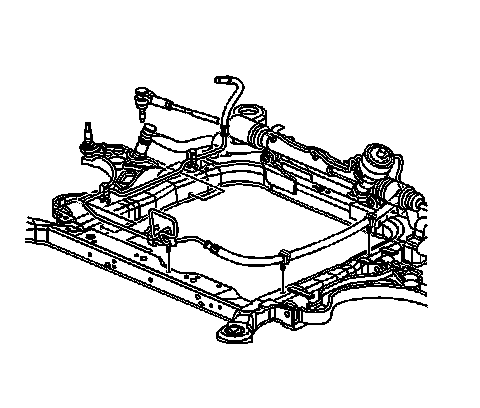

4. Remove the power steering return hose (4) from the power steering gear.

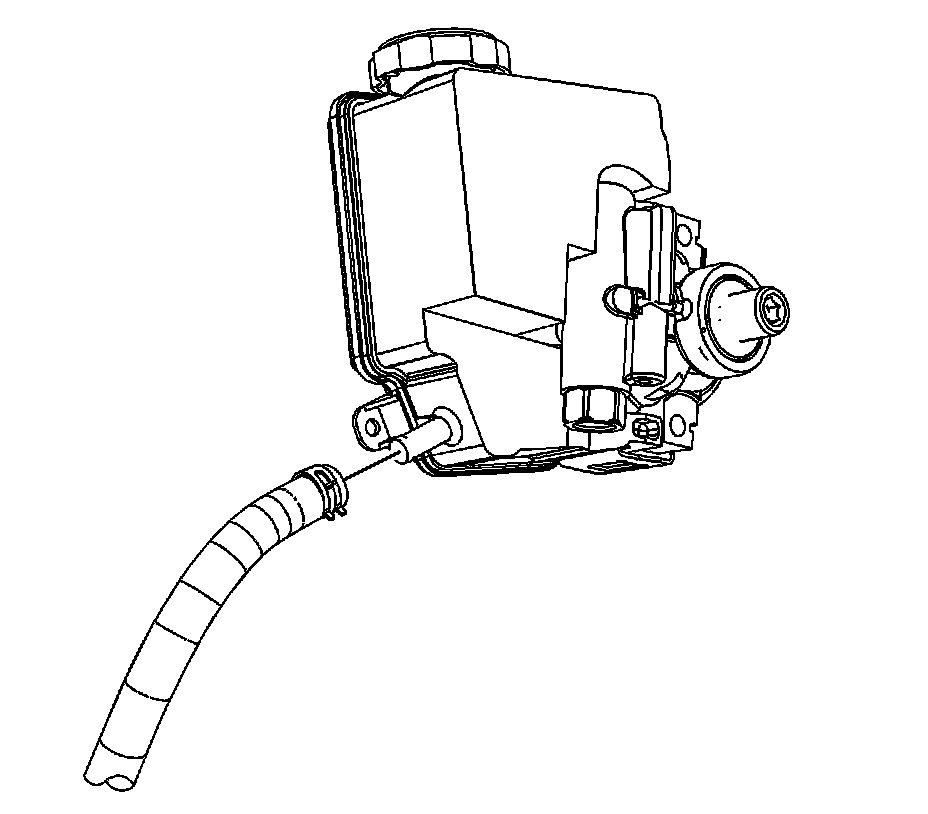

5. Compress the clamp and disconnect the power steering return hose from the power steering pump.




6. Remove the power steering return hose retainers on the frame.
7. Remove the power steering return hose from the vehicle.

Installation Procedure




1. Install the power steering return hose to the vehicle.
2. Connect the power steering return hose retainers to the frame.




3. Compress the clamp and install the power steering return hose to the power steering pump.





Notice: Refer to Fastener Notice.

4. Install the power steering return hose (4) to the power steering gear.

Tighten the power steering return hose to the power steering gear to 30 N.m (22 lb ft).

5. Install the power steering gear heat shield.
6. Lower the vehicle.
7. Bleed the power steering system.
8. Inspect the power steering system for leaks.
