4T80-E - Automatic Transaxle

Automatic Transmission Fluid Pressure Test Hole Plug Replacement

Removal Procedure

1. Remove the throttle body air inlet duct.

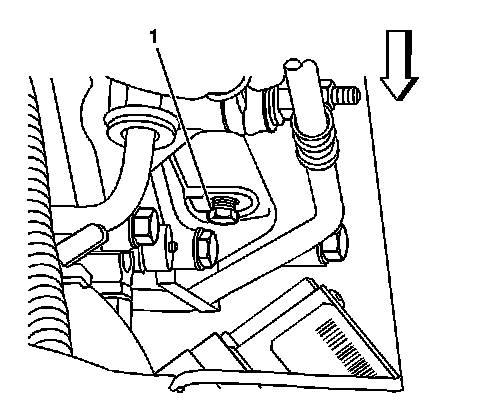

2. Remove the oil pressure test plug (1).

Installation Procedure





Notice: Refer to Fastener Notice in Service Precautions.

1. Install the oil pressure test plug (1).

Tighten the oil pressure test plug to 22 N.m (16 lb ft).

2. Install the throttle body air inlet duct.
