Battery System, Hybrid Drive





Hybrid/EV Energy Storage Schematics

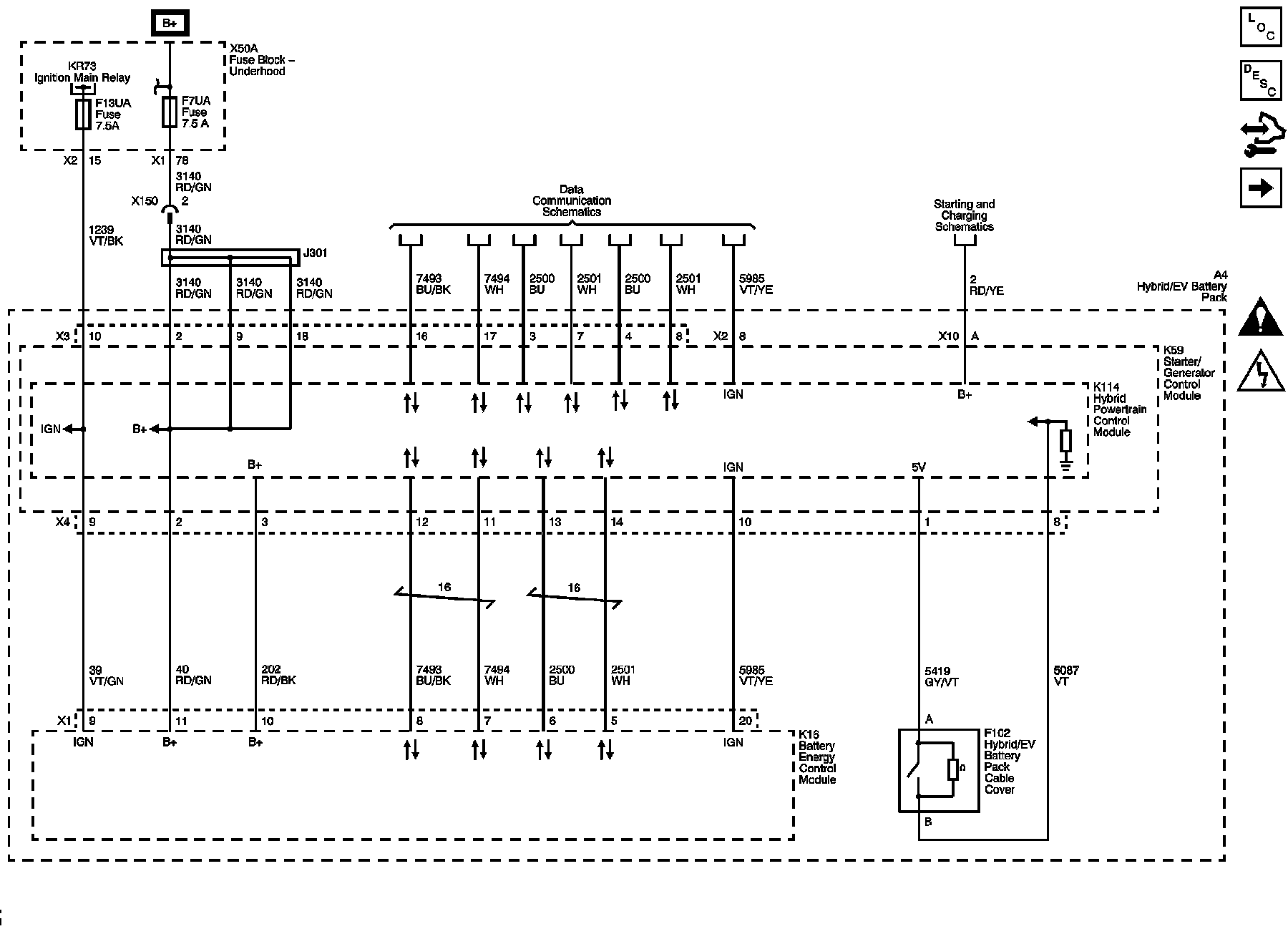

Power, Ground, and Serial Data





Contactors

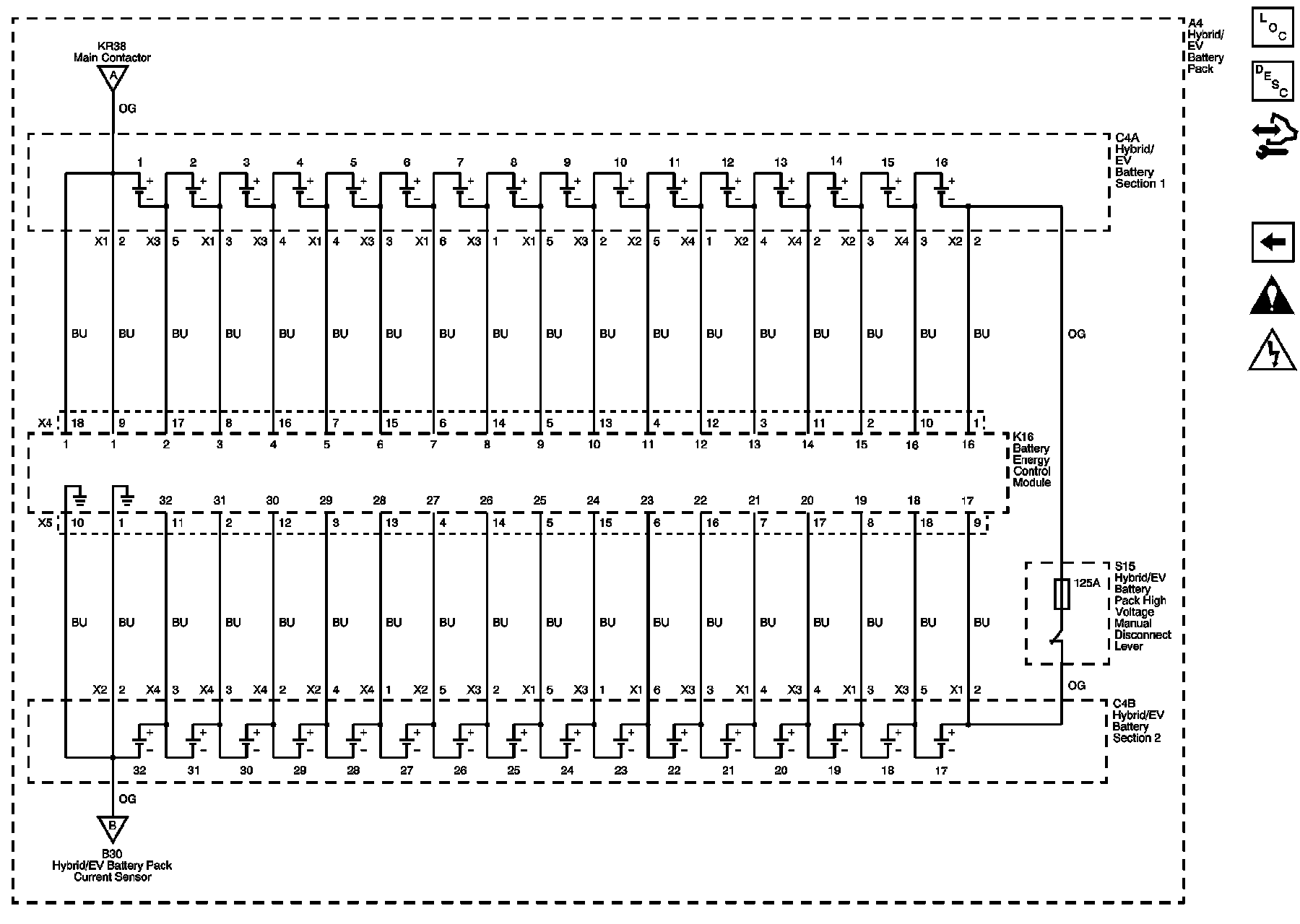

Hybrid Battery Pack Monitoring
