Home >> Cadillac >> 1985 >> DeVille V6-260 4.3L DSL >> Repair and Diagnosis >> Heating and Air Conditioning >> Diagrams >> Electrical Diagrams >> Compressor Controls

Compressor Controls

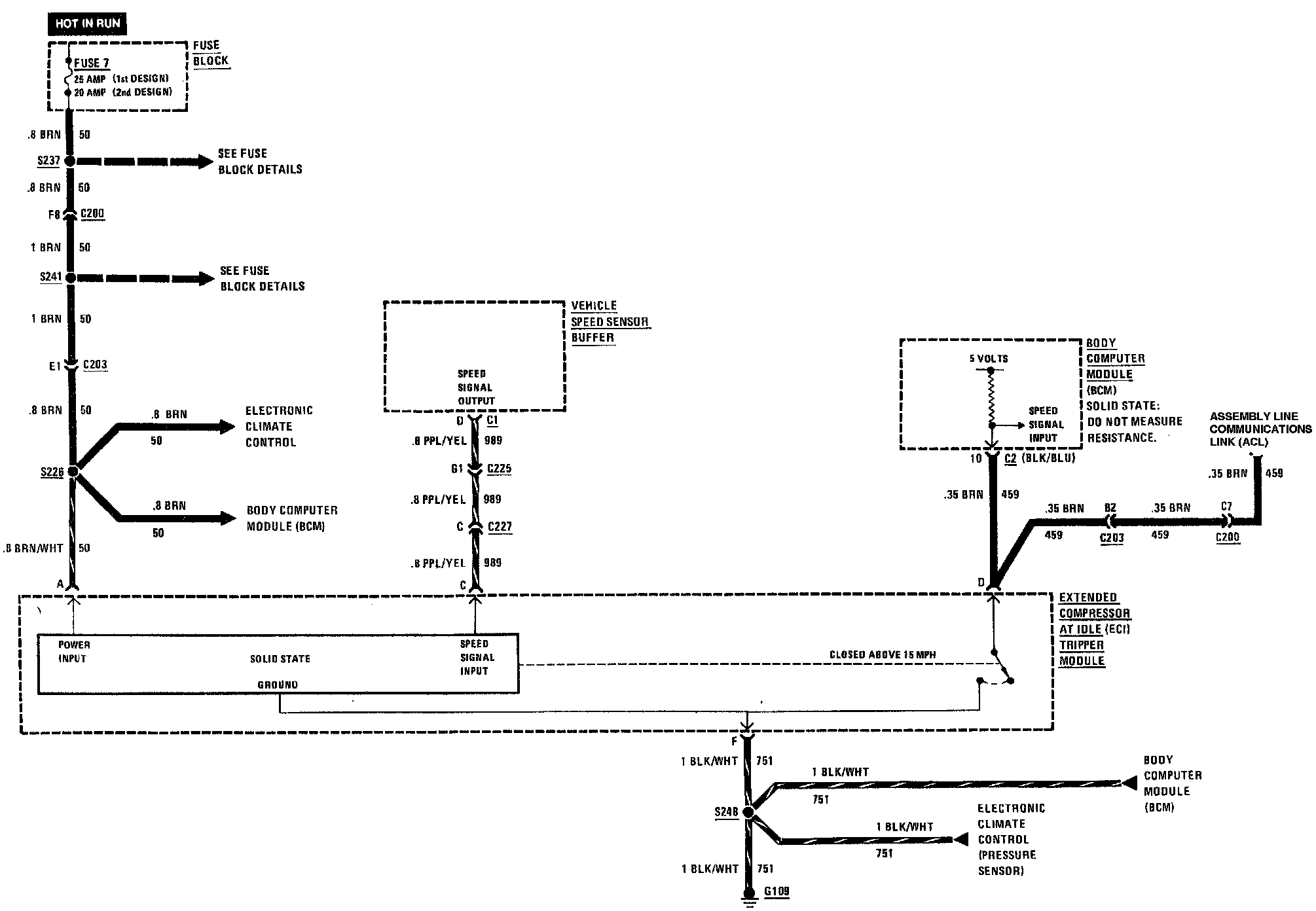

Electronic Climate Control (diesel) - Compressor Controls:
