Temperature Warning Lamp/Indicator, Engine Cooling
Temperature Warning Lamp/Indicator, Engine Cooling

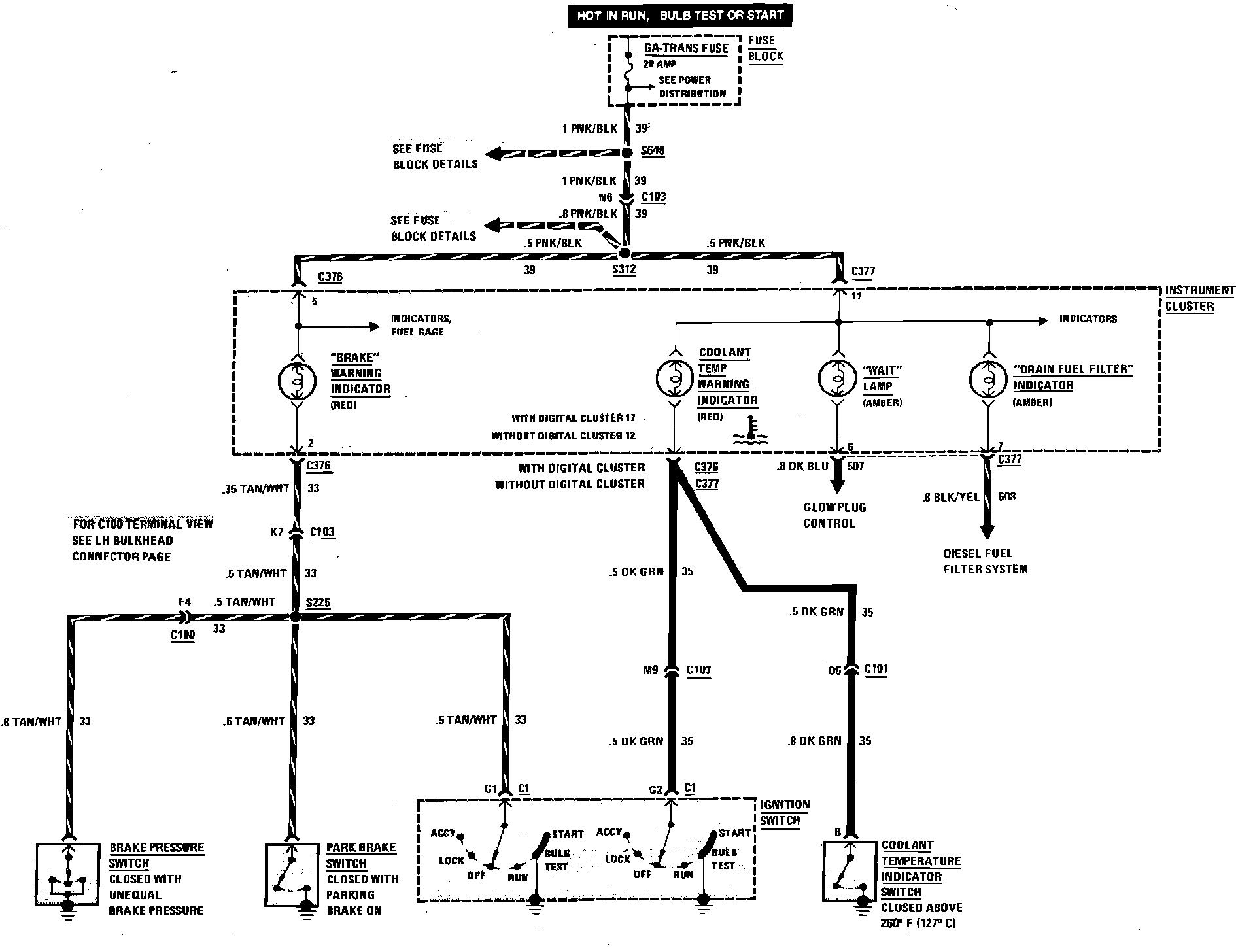

Brake Warning System, Coolant Temperature, Drain Fuel Filter & Wait Lamp Indicator Wiring Circuit:
