Cadillac
>>
1988
>>
Seville V8-273 4.5L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Diagrams
>>
Electrical Diagrams
>>
Fuel Pump Control
Fuel Pump Control

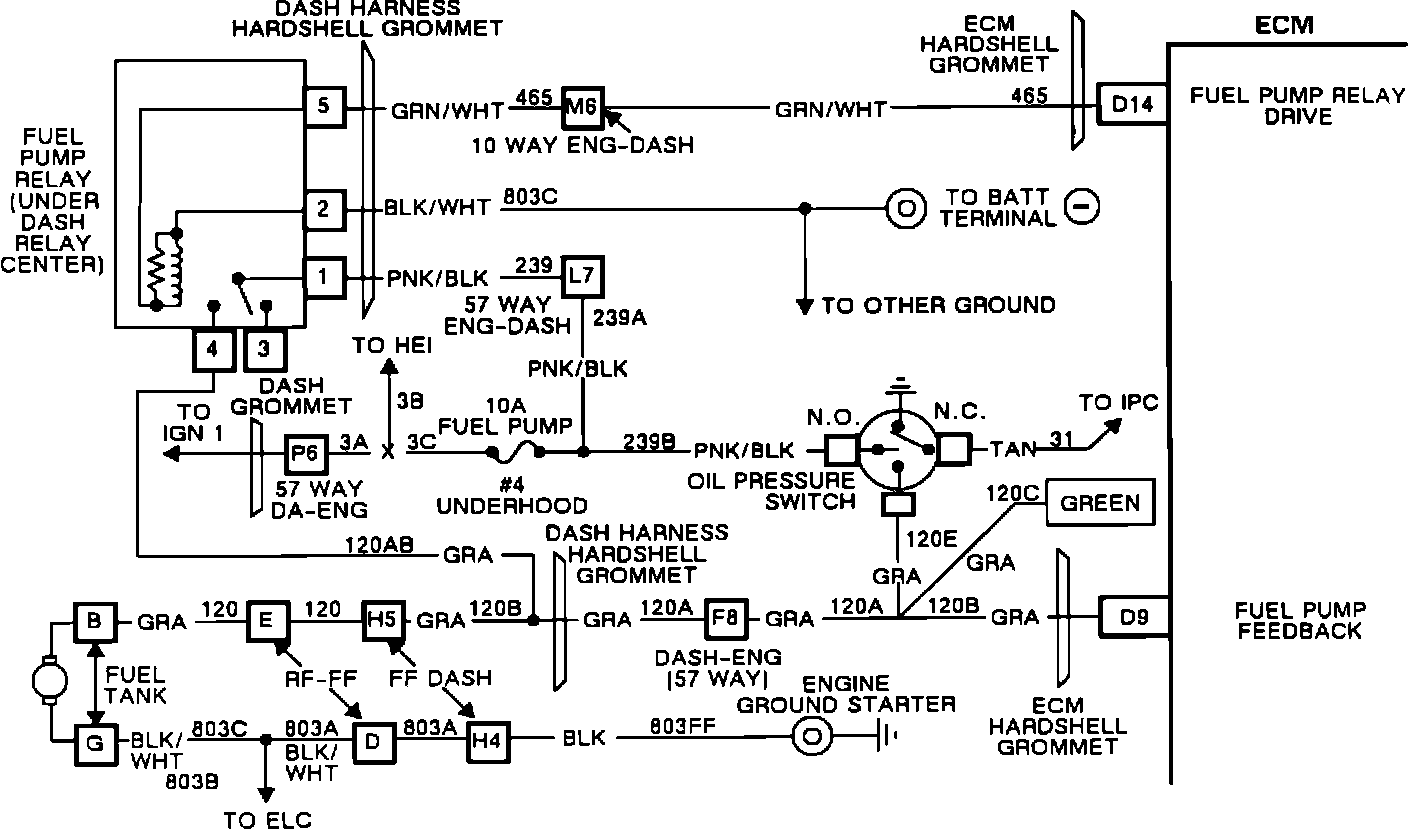

DFI Fuel Pump Circuit:
