Compressor Controls

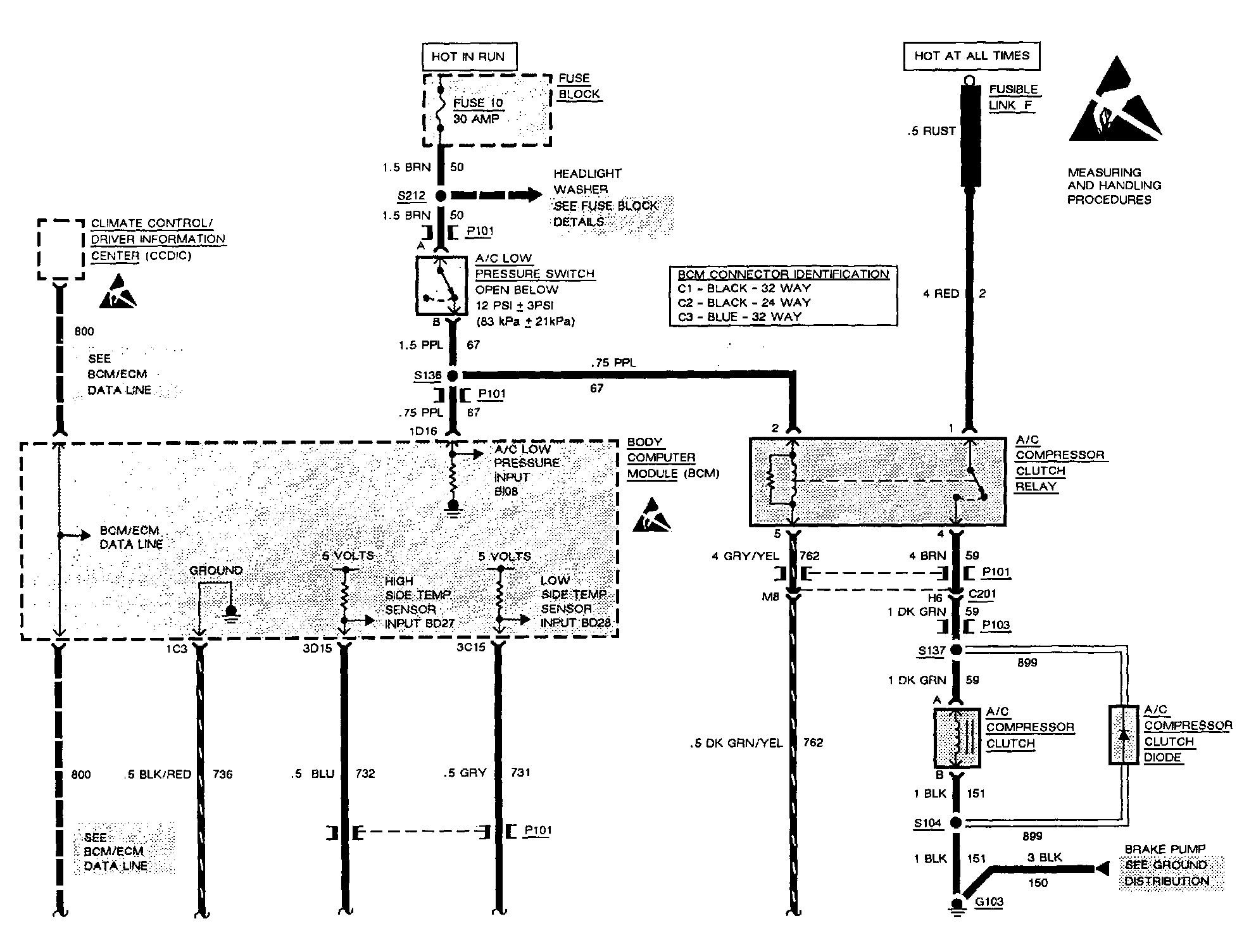

Clutch Controls, BCM, Fusible Link F, Low Pressure Switch:

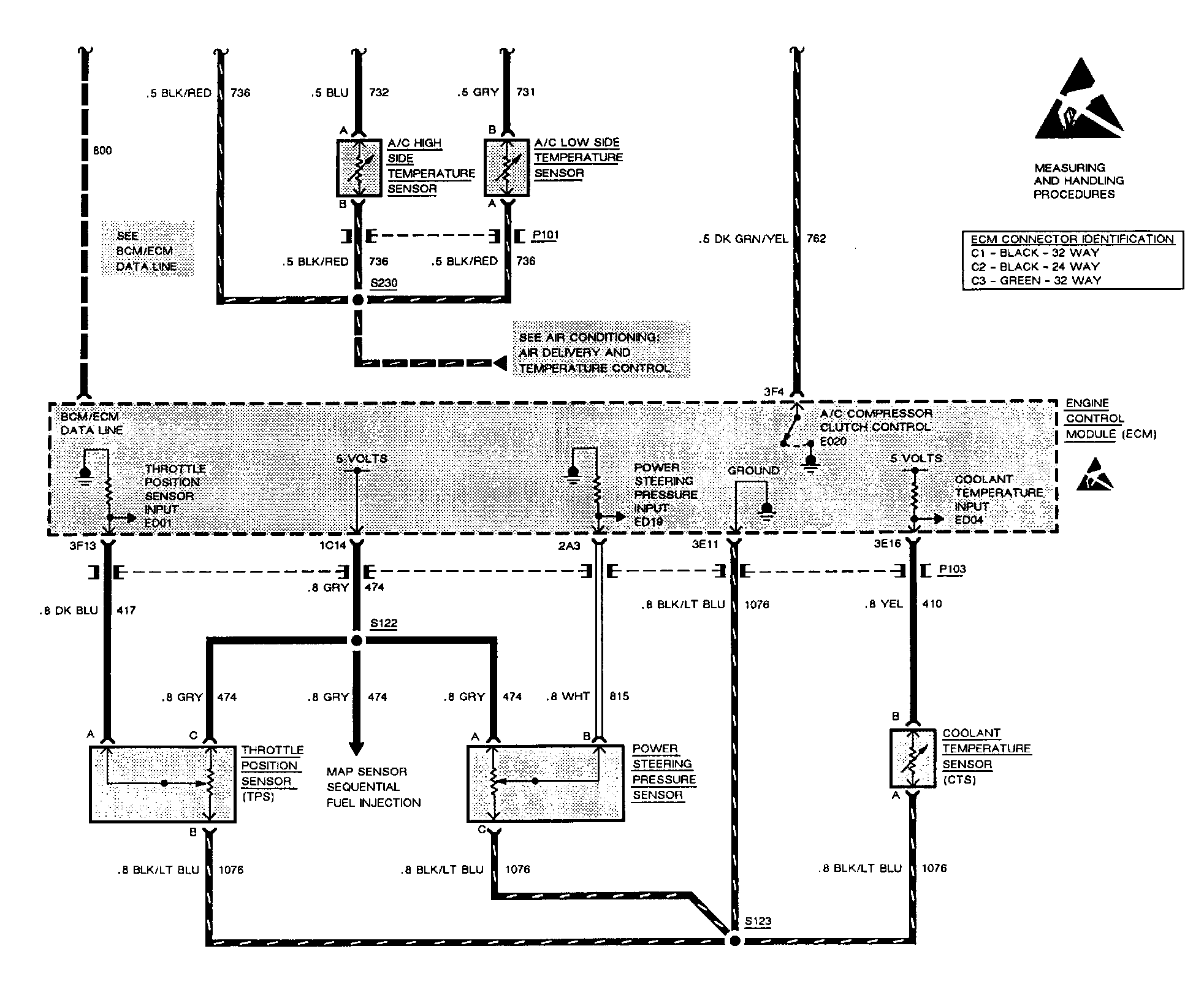

Temperature Sensors, ECM, TPS, PSP, CTS:
