Air Conditioning Switch: Locations

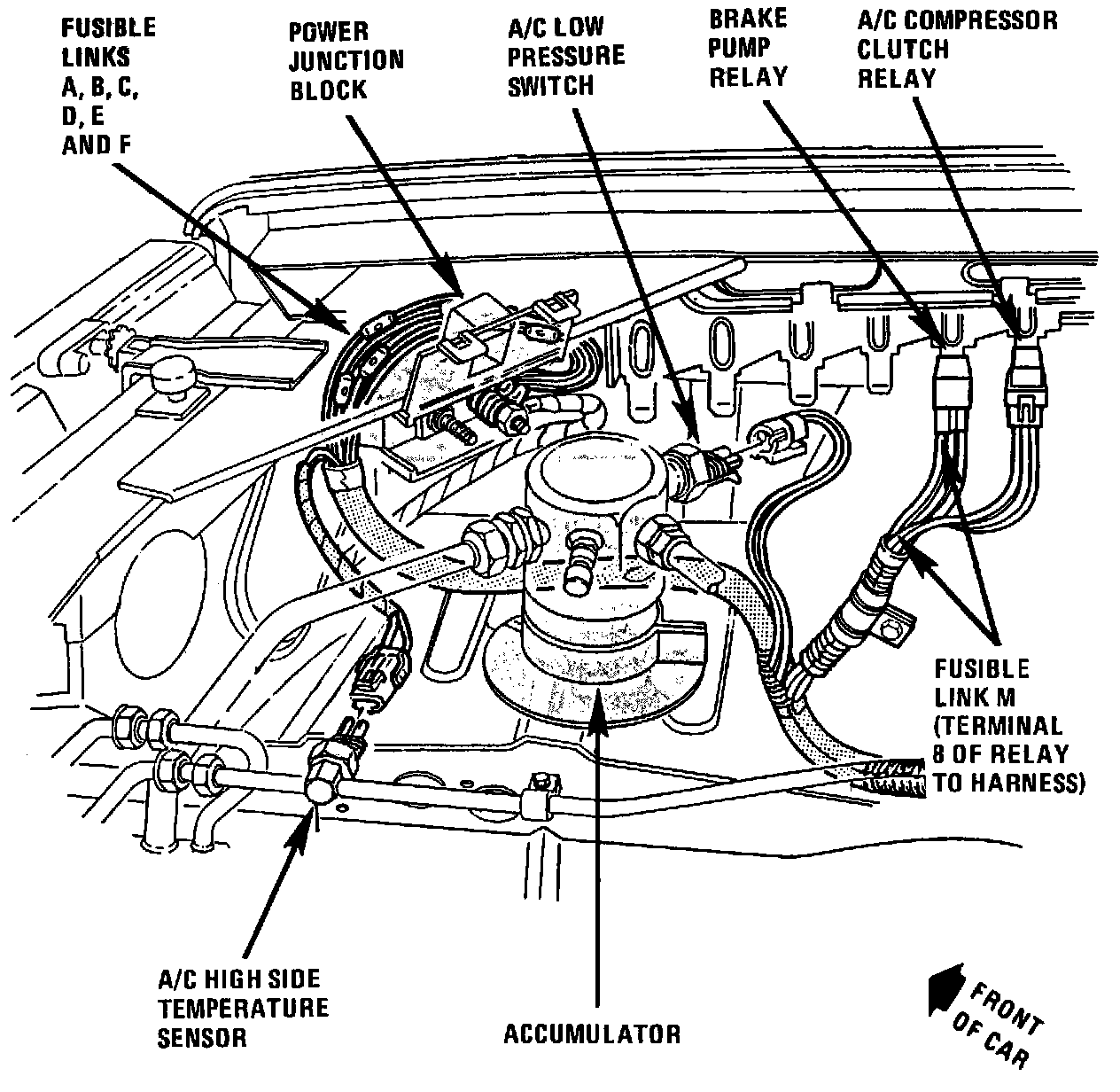

RH Front Of Engine Compartment:





RH front of engine compartment, on rear of accumulator
