Home
>>
Cadillac
>>
1990
>>
Seville V8-273 4.5L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Diode
>>
Locations
>>

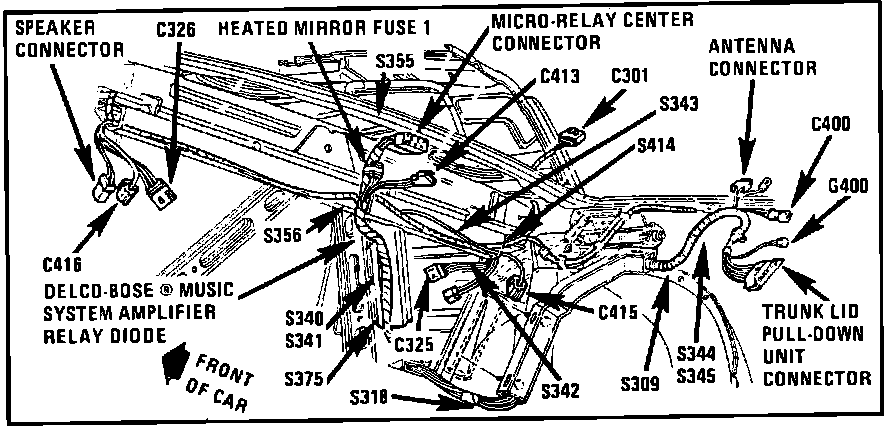

Delco Bose Music System Amplifier Relay Diode
Delco Bose Music System Amplifier Relay Diode
RH Side Of Luggage Compartment.:
RH Front Of Luggage Compartment
Applicable to: Eldorado & Seville
