Channel Plate

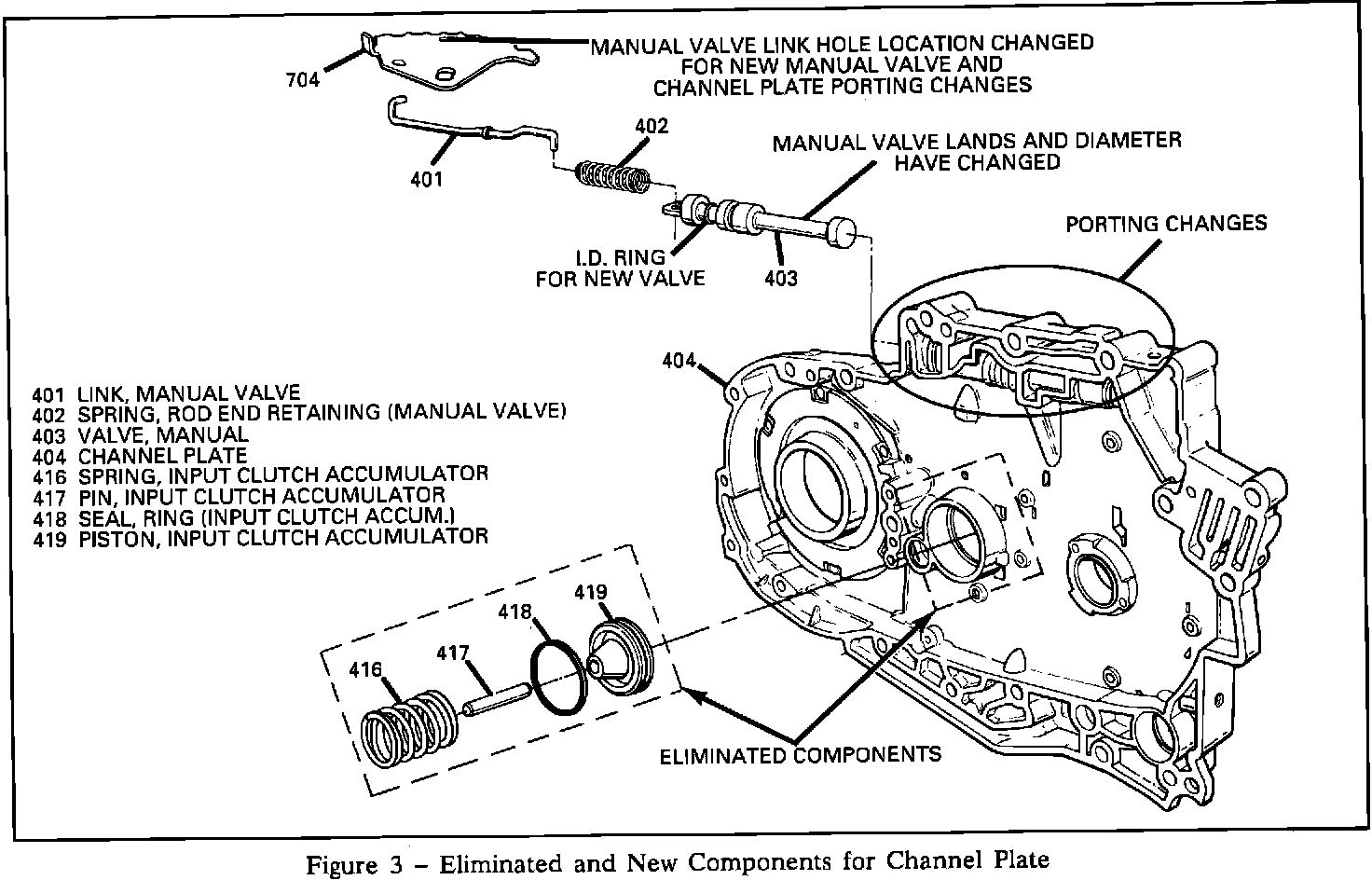

Figure 3:

Channel Plate (Refer to Figure 3)

The channel plate (404) will not have an input clutch accumulator bore and components. The wave plate that was added to the input clutch assembly will replace the function of the accumulator. The previous channel plate with the input accumulator bore and components and the new channel plate are not interchangeable. The channel plate with the input accumulator will still be available for past model service.
