Input Housing

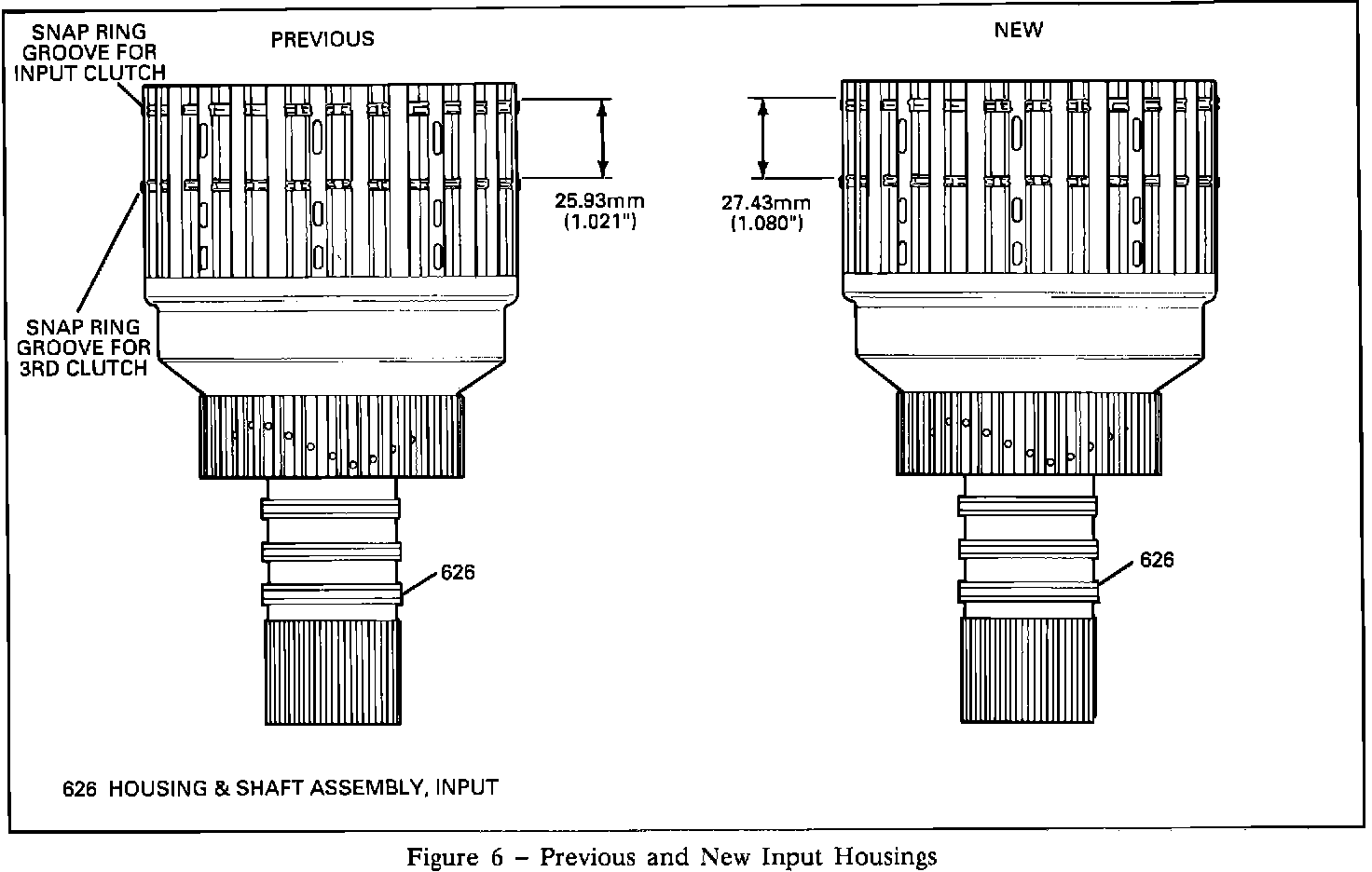

Figure 6:

Input Housing (Refer to Figure 6)

The input housing (632) has been revised by moving the snap ring groove 1.50 mm (.059") to allow for the wave plate and extra input clutch plate used in the input clutch. The previous and new input housings are not interchangeable because of the differences in clutch pack free play and travel. The previous input housing will still be available for past model service.
