Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
1992
>>
Seville V8-300 4.9L
>>
Repair and Diagnosis
>>
Body and Frame
>>
Locks
>>
Power Locks
>>
Power Door Lock Relay
>>
Testing and Inspection
>>

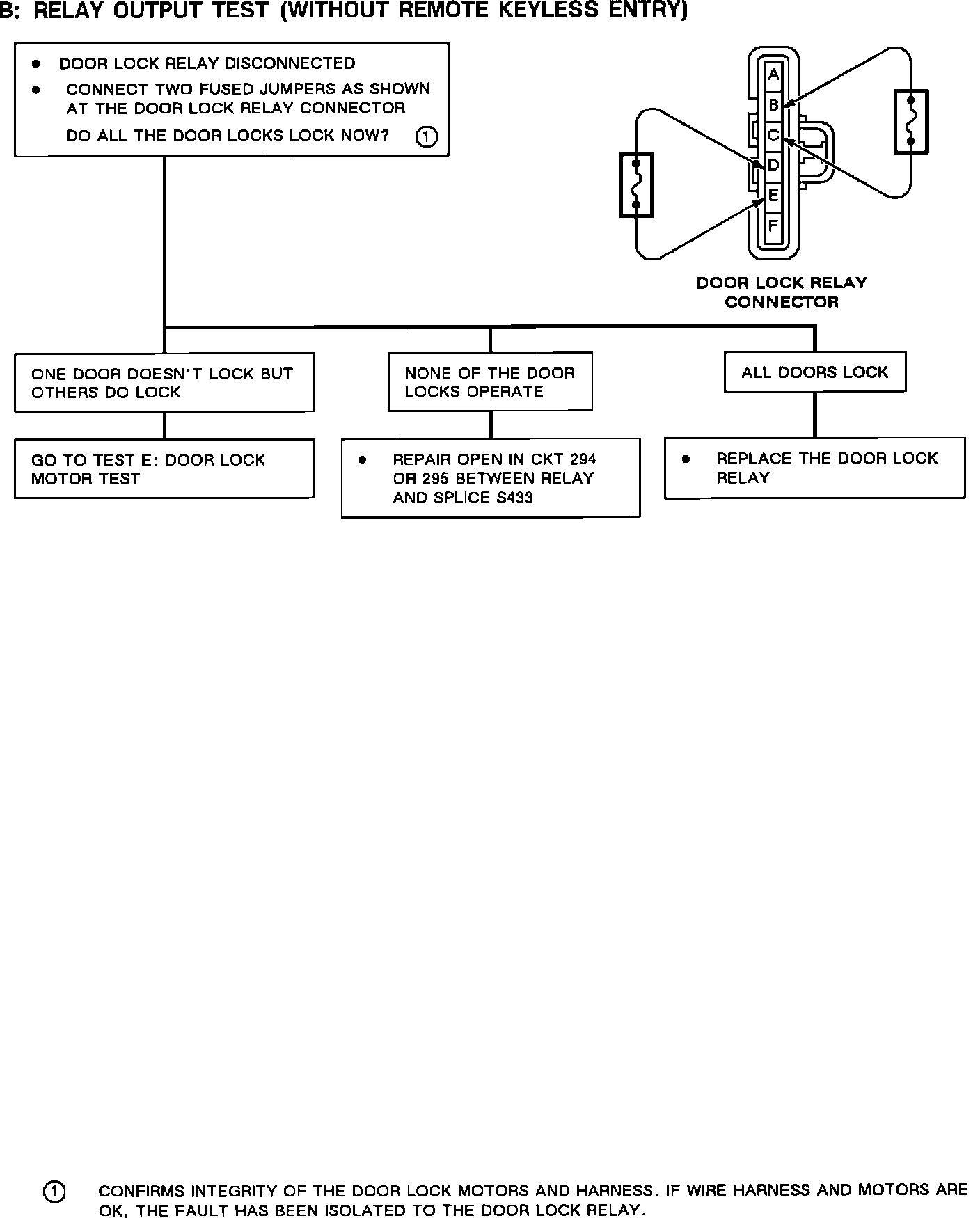

Test B: Relay Output Test (Without Remote Keyless Entry)
Test B: Relay Output Test (Without Remote Keyless Entry)
Diagnostic Chart.:
