Input Test E171 - VCC Brake Circuit
Input Test E171 - VCC Brake Circuit

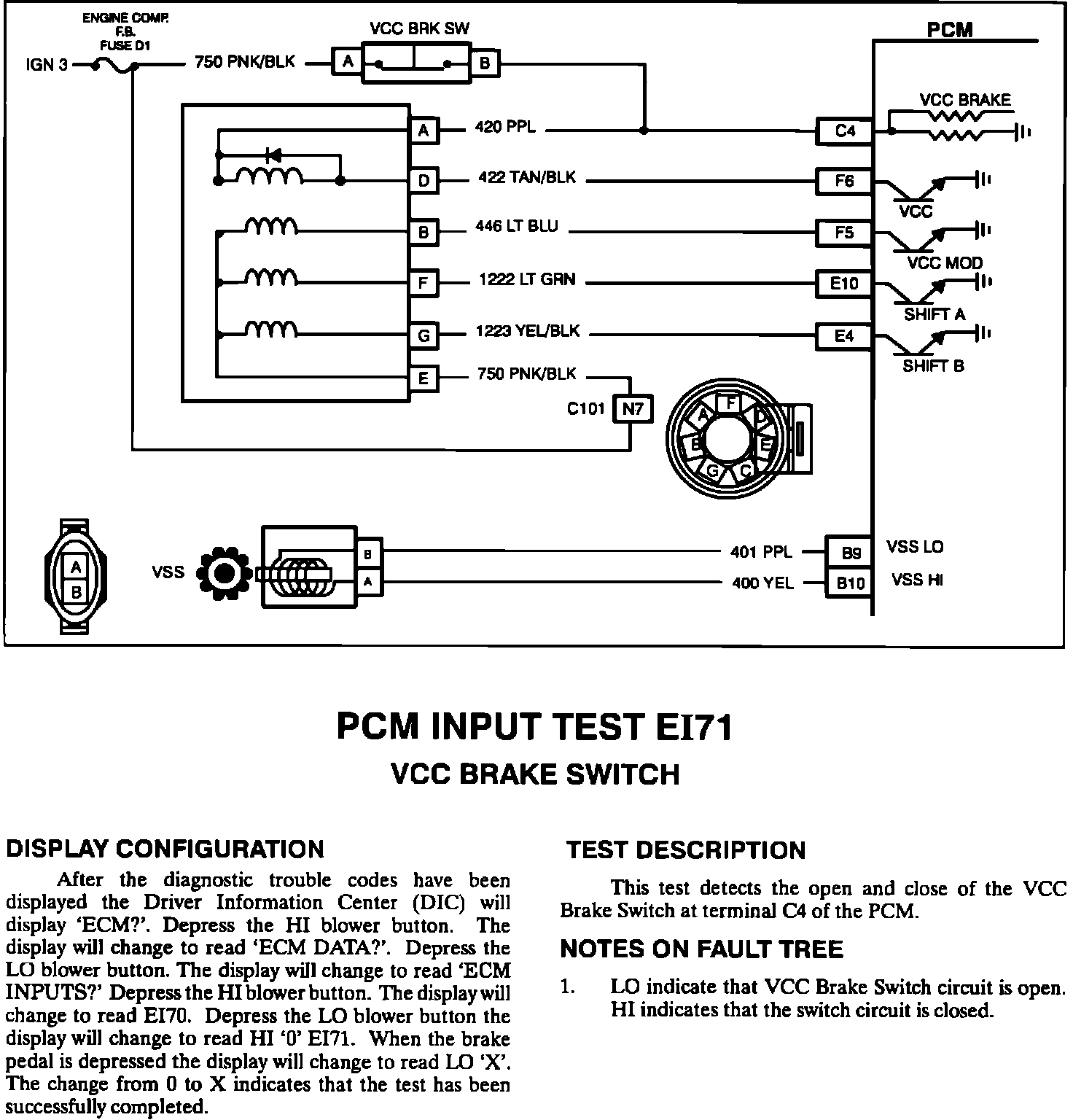

PCM Input Test E171 (Part 1 of 2):

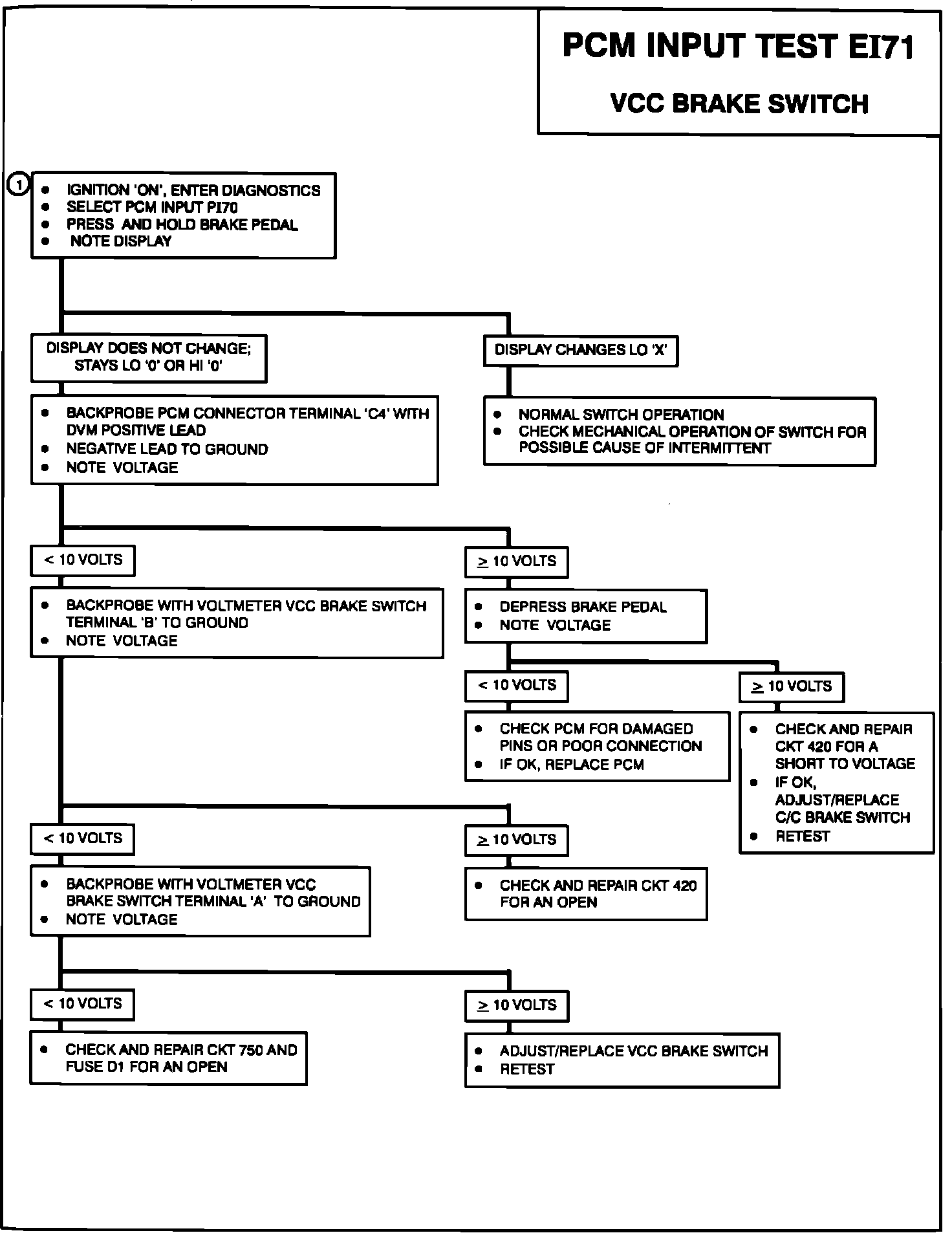

PCM Input Test E171 (Part 2 of 2):
