Repair and Diagnosis
>>
Lighting and Horns
>>
Brake Light Switch
>>
Testing and Inspection
>>

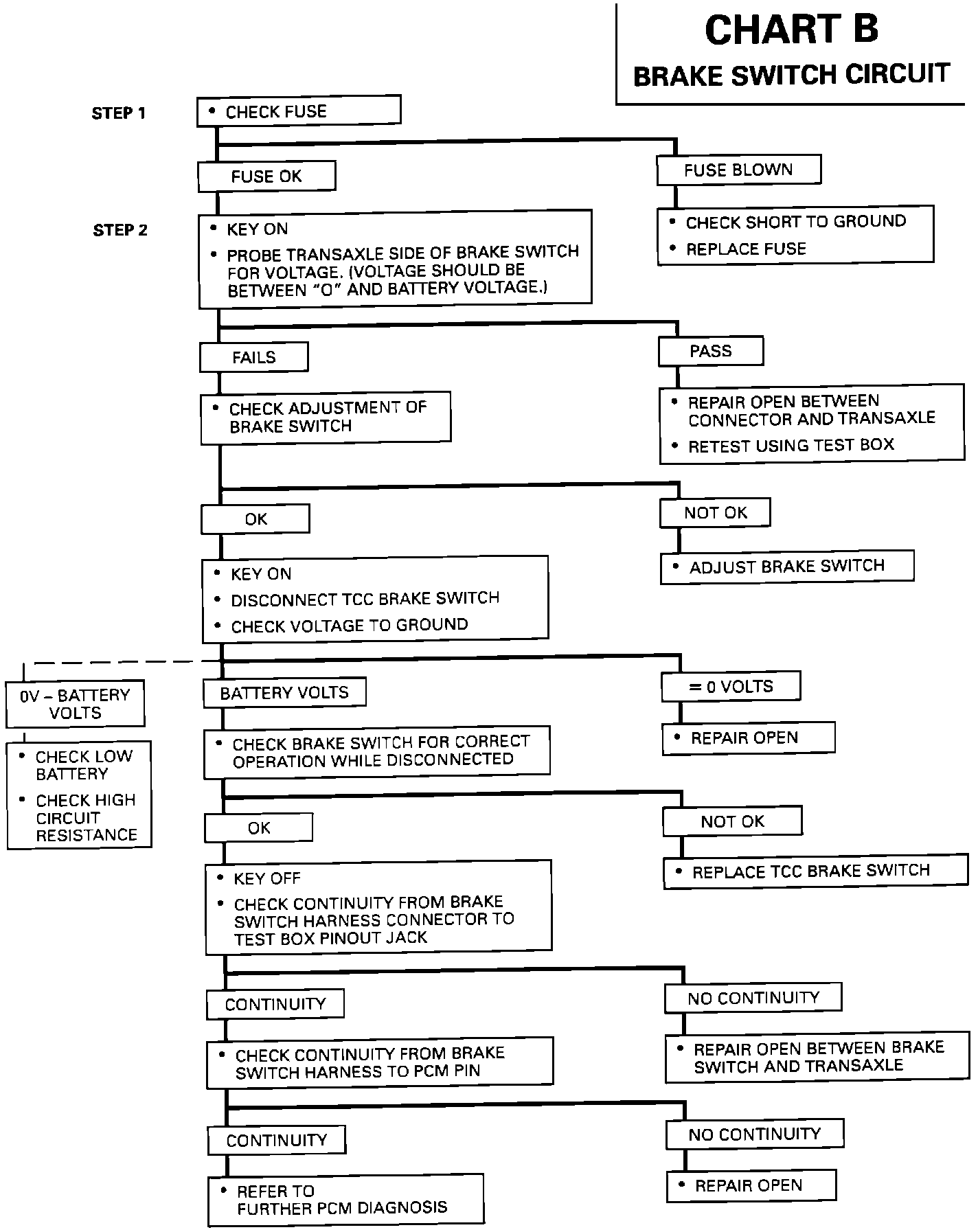

Brake Switch Circuit - Chart B
Brake Switch Circuit - Chart B
Chart B - Brake Switch Circuit.:
