Relay Box - Updated Diagrams & Micro-Relay Info

9210cadillac01

NO.: 92-1-25
DATE: Jan. 1992
GROUP: 8
CORP. NO.: 218103


SUBJECT: INFORMATION ON MICRO-RELAY PART NUMBER FOR 1992 ELDORADOS AND SEVILLES

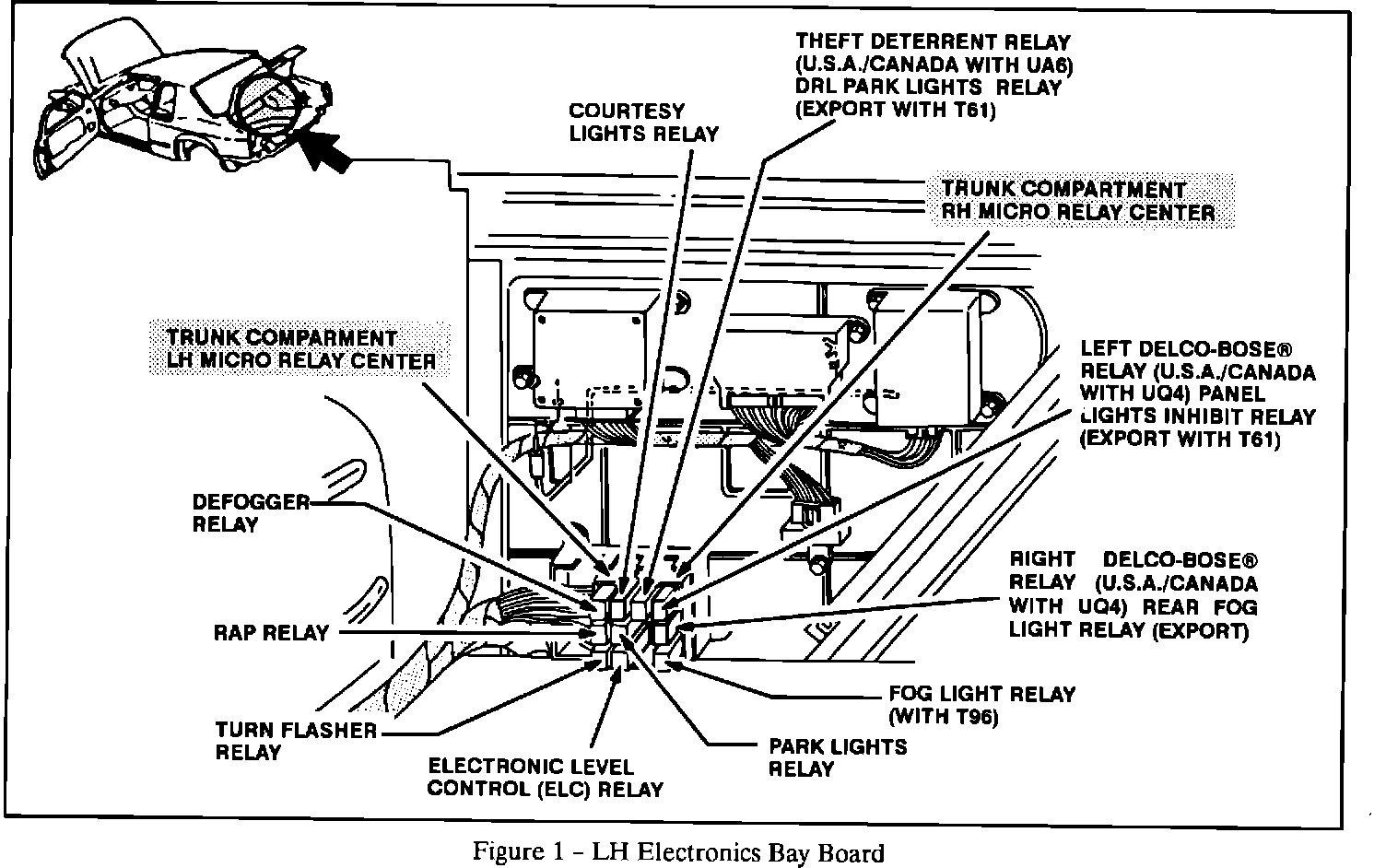

Figure 1:

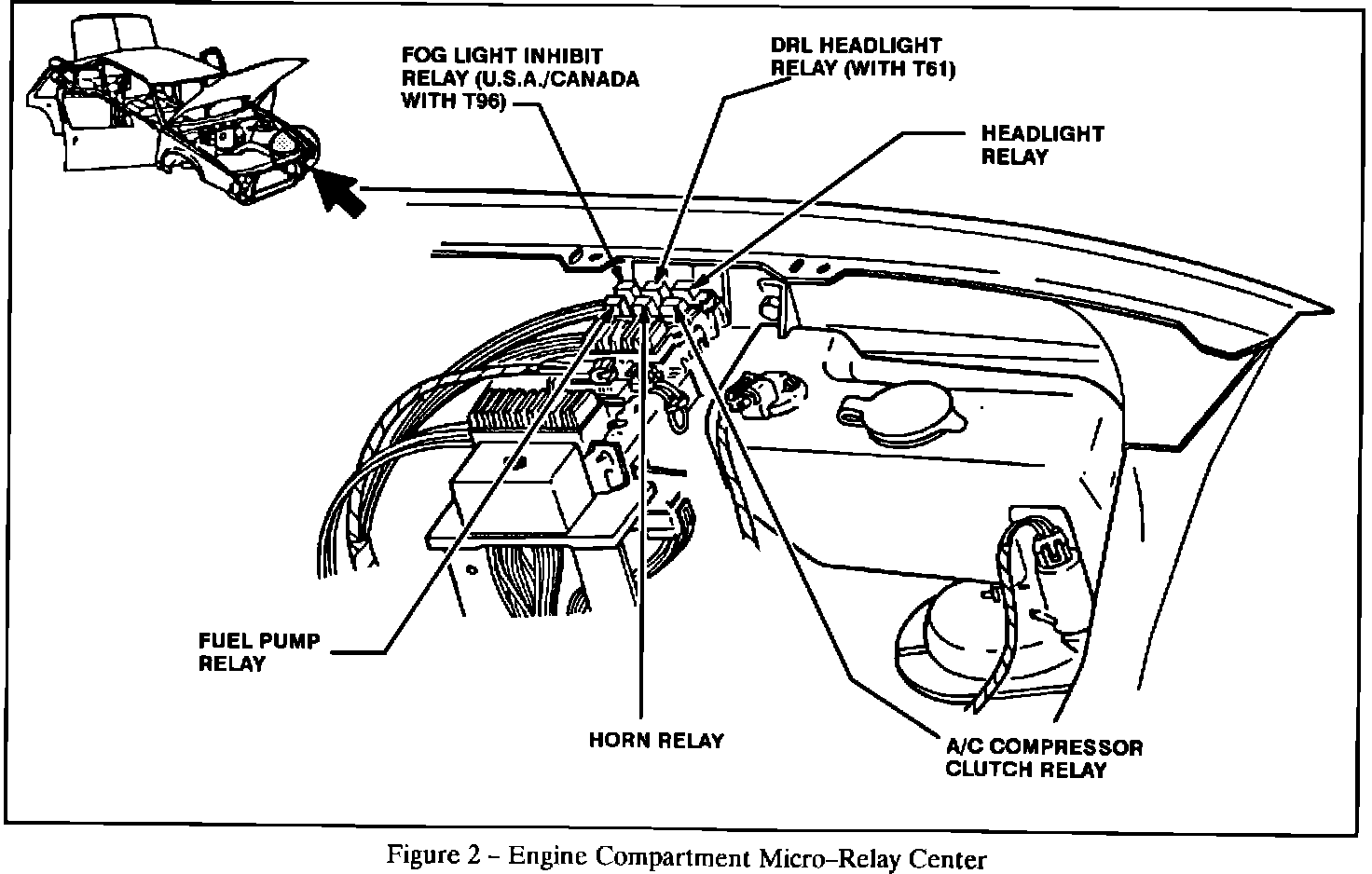

Figure 2:

The 1992 Eldorado and Seville trunk and underhood relay centers use micro-relays. Two different micro-relays are installed when the car is assembled. Refer to Figure 1 for relay locations in the trunk relay center and Figure 2 for relay locations in the underhood relay center. The relays can be differentiated by color (blue or black) and part number. When micro-relay replacement is necessary use P/N 12065125 (black) which supersedes relay P/N 12088561 (blue) and 12065118 (black).

Parts are currently available from GMSPO.
